Product Details:
|
| Model NO.: | JYZ-250 | Structure: | Horizontal |
|---|---|---|---|
| Transport Package: | Standard Export In Whole Container | Specification: | 60 Liter |
| Trademark: | TOKCHON | Origin: | China |
| HS Code: | 847780 | Production Capacity: | 1000 Sets/Year |

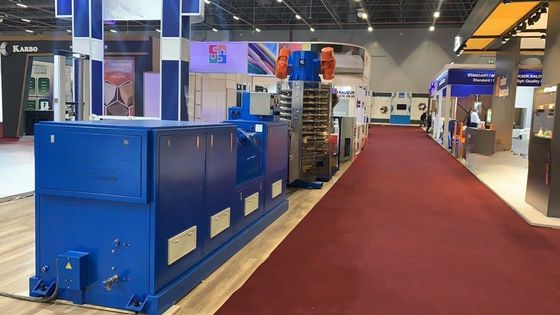

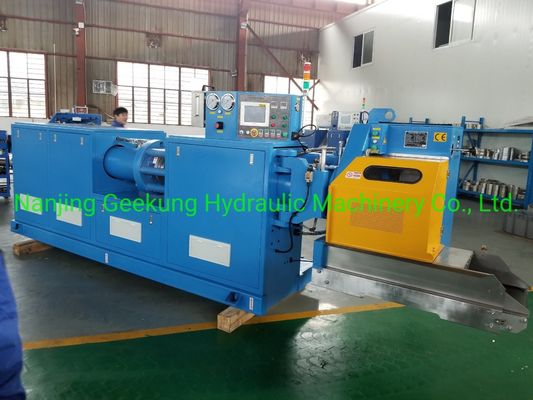

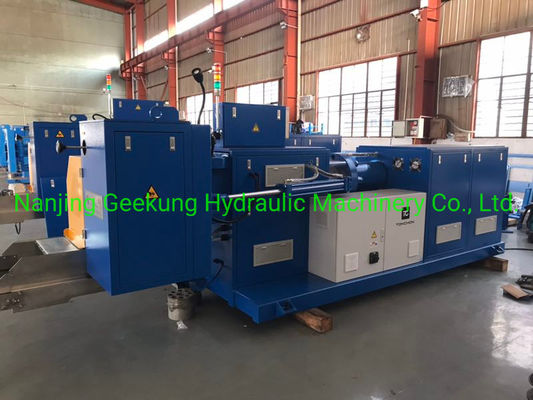

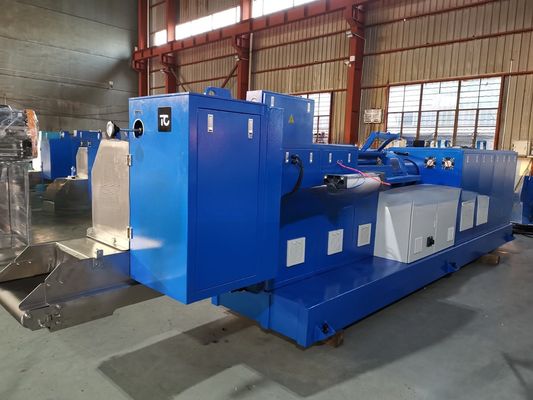

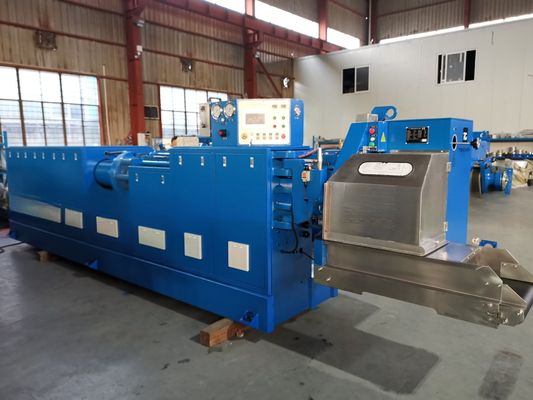

Rubber Sole Preforms Making Machine is a high efficiency and high precision rubber blanks preparation equipment.
Our Rubber Preforming Machine for rubber sole is the Preformer machine specially developed for rubber sole industry, it is a high efficiency, high precision rubber sole blank preparation equipment, instead of traditional stamping or manual cutting, directly cut the rubber compound into rubber sole shape with exact required weight,greatly improving production accuracy and efficiency, reducing rubber waste and saving labor force.
Cutting weight accuracy of sole blank is up to ± 1%.
| Model | JYZ-150 | JYZ-200 | JYZ-250 | JYZ-250+ |
| Barrel diameter | 150 mm | 200 mm | 250 mm | 250MM |
| Total power | 16 kw | 16 kw | 22kw | 26 kw |
| Max.oil cylinder pressure | 36.8 Mpa | 21 Mpa | 21 Mpa | 21 Mpa |
| Max.barrel temperature | 95ºC | 95ºC | 95ºC | 95ºC |
| Max. die diameter | 80 mm | 125 mm | 190 mm | 190 mm |
| Rubber bland weight range | 0.3~100 g | 0.3~200g | 0.3~2000g | 0.3~2000g |
| Rubber blank weight precision | ±1.0% | ±1.0% | ±1.0% | ±1.0% |
| Feed capacity per batch | 10~15 kg | 20~25 kg | 60~70 kg | 100~110 kg |
| Blade rotation speed | 35~400 RPM | 35~400 RPM | 23~400 RPM | 23~400 RPM |
| Dimension(L×W×H) | 4×1.15×1.7 m | 4×1.15×1.7 m | 5×1.15×1.7 m | 6.5x1.15x1.7 |
| Weight | 2.8 T | 3 T | 4T | 5T |
The rubber preformer is packaged well by the stretch film first,and fixed professionally by the strong (solid) steel wire ropes,ensuring the machines remain still and won't slide in the container during the long distance of land and sea transportation, and reach the clients factories safely.
We supply quick after sales service, including online consultation,instruction and also onsite face-face service if required by the clients.
We have professtional after sales serivce team who can give you satisfactory quick response,including technical questions,trouble-shooting,installation,etc.
