Product Details:
|
| Model NO.: | XQ-620 | Structure: | Horizontal |
|---|---|---|---|
| Transport Package: | Standard Export Wooden Case Package | Specification: | XQ-1000 |
| Trademark: | Geekung | Origin: | China |
| HS Code: | 8477800000 | Production Capacity: | 1000 Sets/Year |

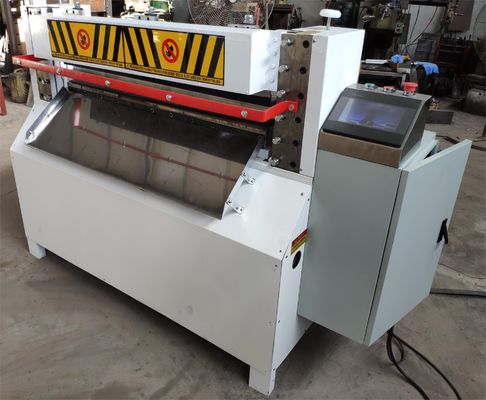

Rubber Strip Cutter with PLC control and HMI operation :
Description:
| Model | XQ-450 | XQ-620 | XQ-820 | XQ-1000 | XQ-1220 |
| Max. feeding rubber width(mm) | 450 | 620 | 820 | 1000 | 1220 |
| Max. cutting thickness (mm) | 20 | 20 | 20 | 20 | 20 |
| Max. Cut efficiency (times/min) | 86 | 86 | 80 | 80 | 65 |
| Cut precision | ±0.1mm | ±0.1mm | ±0.1mm | ±0.1mm | ±0.1mm |
| Motor power(KW) | 1.5 | 1.5 | 2.5/3 | 2.5/3 | 4/5.5 |
| Dimension (LxWxH:cm) | 105x70x110 | 115x85x110 | 140x96x120 | 165x100x123 | 180x100x142 |
| Weight(Kg) | 500 | 750 | 840 | 1050 | 1200 |

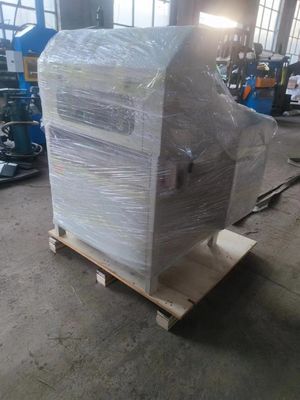

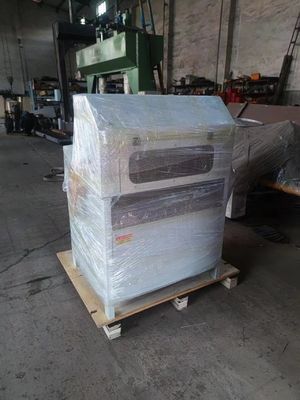

The rubber strip cutting machine is packaged well by the strong wooden case,ensuring non damage during the long distance of land and sea transportation, and reach the clients factories safely.
We supply quick after sales service, including online consultation,instruction and also onsite face-face service if required by the clients.
We have professtional after sales serivce team who can give you satisfactory quick response,including technical questions,trouble-shooting,installation,etc.
Our business principle is that :
Move ahead along with the spirit of "Responsibility& Sincerity for Customers" and "Cooperative&Enterprising Team" to "Create a Better Future Together ".
It is our promise and duty to execute the 3 No worries for clients:
No worries before order,
No worries after order,
No worries in produciton.
