Product Details:
|
| Condition: | New | Video Outgoing-inspection: | Provided |
|---|---|---|---|
| Machinery Test Report: | Provided | Marketing Type: | Ordinary Product |
| Warranty Of Core Components: | 1 Year | Core Components: | Engine, Bearing, Motor, Spindle, Control System |
| Application: | Metal Workpiece | Power (kW): | 3 |
| Warranty: | 1 Year | Key Selling Points: | Automatic |
| Weight (KG): | 500 KG | Applicable Industries: | Oil Seal Factory, Metal Case Factory, Metal Workpiece Factory |
| Showroom Location: | Turkey, India | Port: | Shanghai |

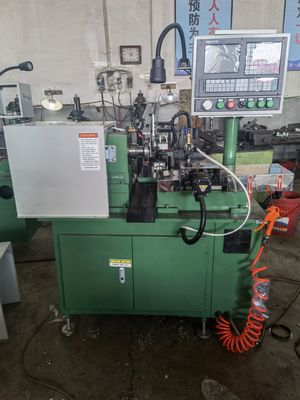

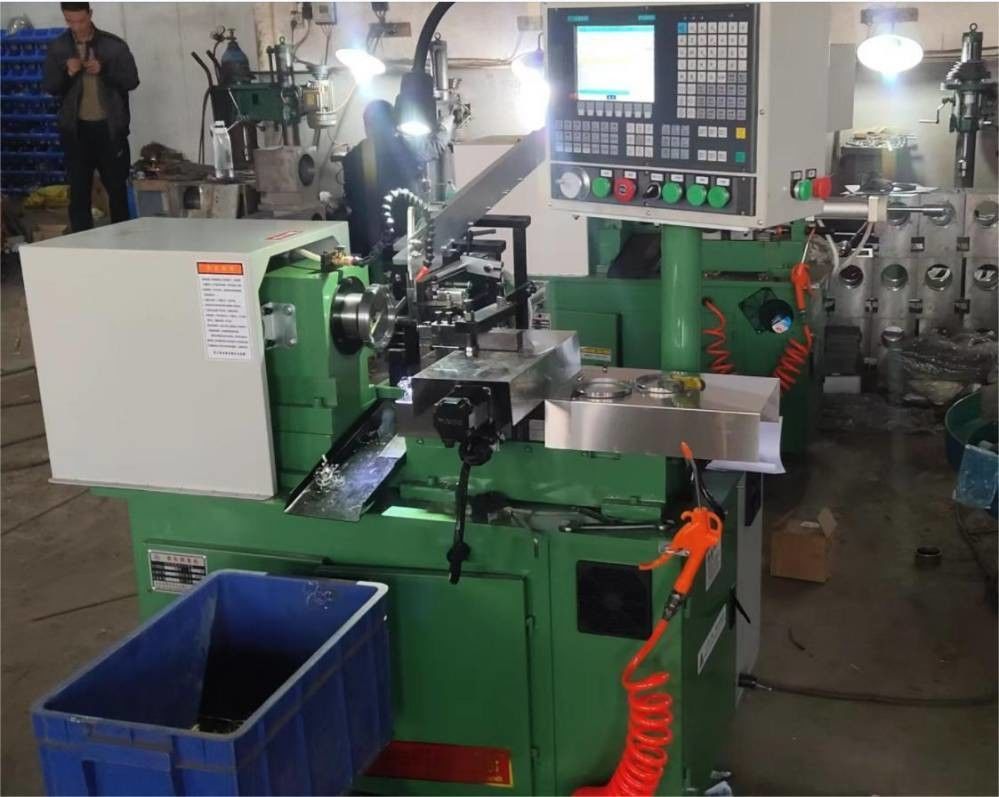

CNC Chamfering Machine for Metal Case/Sleeve/Cup:
It is Suitable for complex facing or machining & chamfering on metal workpieces, such as oil seal metal case,metal sleeve,metal cup,featuring flexible multi-functions processing purposes and high processing precision.
1.Automatic Feeding of Metal Workpieces on a Die for Facing&Machining or Chamfering. High Efficiency & precise processing.
2.Loading the Metal Workpieces manually in line in the feeding conveyor→ Metal Workpieces are delivered forward by the Conveyor → Robot Grip & Feeds Metal Case on the Collet → Automatic Machining or Chamfering by servo motor control→Finished Metal Workpieces are ejected out.
Technical specification:
Model: CNC-D50-130
Spindle spec: 0640
Spindle motor: 3KW
Inverter:EM330-4.0KW
Spindle speed: 0-1500 r/min
Power system: pneumatic (Air pressure: 0.4 Mpa)
Control system: DF-2000TB3 double axis control system.
X-axis configuration: 60 servo motor 0.5KW / grinding type ball screw 2004.
Z axis configuration: 80 servo motor 0.75KW / grinding type ball screw 2005.
Processing range: diameter 50-130mm, height 5-25mm
Scope of application: complex multi-station machining of round workpieces.
Processing capacity: 700-900PCS/hr
Power supply: AC380V
Dimension:L1.5xW1.1xH1.5m
Weight: 500 Kg
