Product Details:
|
| Condition: | New | Video Outgoing-inspection: | Provided |
|---|---|---|---|
| Machinery Test Report: | Provided | Warranty Of Core Components: | 2 Years |
| Core Components: | PLC, Engine, Motor, Gear | Machine Type: | Rubber Preformer |
| Voltage: | 380,220V,415V,440V,480V | Dimension(L*W*H): | 5000x1200x1700mm |
| Weight: | 4000 | Warranty: | 1 Year |
| Power (kW): | 26KW | Key Selling Points: | Famous Brand PLC |
| Showroom Location: | Turkey | Applicable Industries: | Manufacturing Plant |
| After-sales Service Provided: | Field Installation, Commissioning And Training | After Warranty Service: | Video Technical Support |
| Marketing Type: | New Product 2019 |

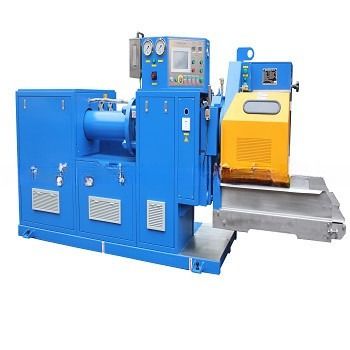

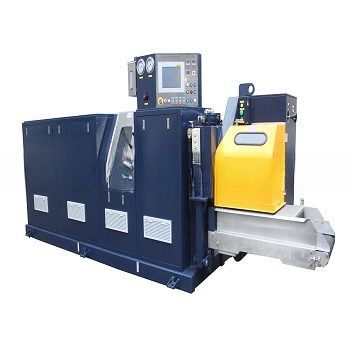

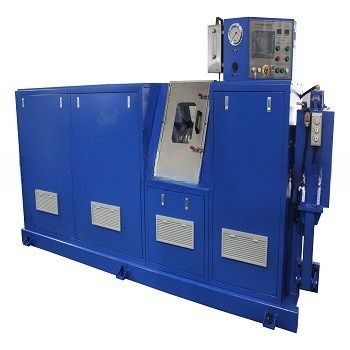

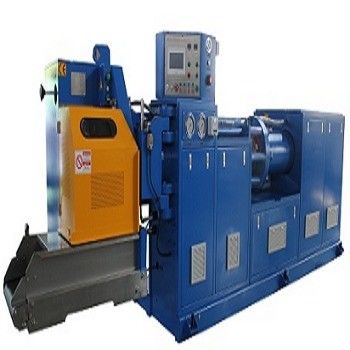

Rubber Precision performer (also called Barwell abroad) is a high efficiency and high precision rubber blanks
preparation equipment,with high rubber applicability ,can squeeze out rubber blank with kinds of ring shape,
rectangular,strip,or other shapes. It is particularly suitable to produce rubber seal,inflating valve,cork&bottle
stopper,oil seal,shoe sole,shock absorber for automobile,etc. Rubber Precision Preforming Machine also calld
Barwell abroad ,it compose of functions of vacuum,filtering,extrusion,cutting,weighting,counting,etc.
Adopt PLC control and touch screen operation.Color display guide you to easily perform data entry, password protection.
It can store 1000 kinds of products data,which can be used any time.
Variable frequency motor control the cutter speed infinitely.
Electronic scale with closed feedback,to control weight of rubber blank.
Reliable security,the movements of head ,cutter and plunger piston are interlocking.
Failure will be shown by icon and text.
Vacuum system: before extruding and cutting, using vacuum system to remove the air and gas in barrel, head, inside the compound mixture, thereby enhancing the quality of products under the curing process.
Heating System: The water cycle heating mode, temperature control by a digital thermostat and display. Ensure nose, barrel temperature constant.
Single cylinder design ,barrel is lengthened,improving mechanical stability,easier to clean.
Structure introduction:
Rubber Preforming machine is mainly composed of a ram extruding devices and rubber cutter device installed in the machine head,besides, equipped with hydraulic system, vacuum system, heating system, pneumatic and electrical systems.Before work,open the head,feed the preheated rubber rolls into the barrel,close the head,set extrusion speed, cutting speed and desired rubber bland weight,by the computer closed loop feedback, will get rubber blank with high weight precision.
Extrusion device: Composed of barrel,head,hydraulic cylinder,etc.
Hydraulic device: use high pressure gear pumps, flow valves imported from Japan ,YUKEN brand , hydraulic oil of hydraulic cylinder is controlled by flow valve.The pressure difference before and after the throttle valve is controlled by the pressure difference valve at a constant value, ensure accurate extrusion of rubber blank weight.
Pneumatic device: used for control movements of head open and close.
Vacuum system: Before rubber extrusion,start the vacuum to release air stored in the barrel ,head and rubber material.
Heating System: The water cycle heating mode, temperature control by a digital thermostat and display. Ensure head, barrel temperature constant.
Cutting device: composed of the frame, motor, reduction system. The conveying device is installed under the machine frame.
Visit to customers:
Shanghai International Rubber Exhibition:
Turkey International Rubber Exhibition:
1. Reply your inquiry in 24 working hours.
2. Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staff.
3. Professional factory: We are manufacturer, specializing in producing all kinds of machinery for more than 11 years, competitive with good quantity.
Nanjing Mixer Industrial Co., Ltd (the same company as Nanjing Mixer Rubber&Plastic Machinery Co., Ltd) We are the sister company with Taixing Reshine Rubber&Plastic Machinery Co., Ltd ,Ningbo Dechuan Machinery Co., Ltd and Wuxi Zhenxing Machine Co.,having more than 10 years of experience in the field of rubber&plastic machineries, owning 5 manufacturing plants, mostly are located within the scope of 300 KM around Shanghai, having dozens of experienced engineers and more than 100 skilled workers, as well as a considerable number of precise, digital-control, advanced processing machine tools. All ensure every part and details of our machines with good performance and qualified running test before delivery to our customers on time.
