1.5x2.2x2.7m Barwell Vibracool/Spiral Rubber Vibratory Cooling Machine for Fast Cooling

Large Image : 1.5x2.2x2.7m Barwell Vibracool/Spiral Rubber Vibratory Cooling Machine for Fast Cooling

Product Details:

Place of Origin:	Zhejiang, China
Brand Name:	MIXER/DECHUAN
Certification:	CE,ISO
Model Number:	LSX1150

Payment & Shipping Terms:

Price:	$10,000.00 - $99,999.00/sets
Packaging Details:	wooden case
Supply Ability:	10 Set/Sets per Month

Contact Now

1.5x2.2x2.7m Barwell Vibracool/Spiral Rubber Vibratory Cooling Machine for Fast Cooling

Description

Condition:	New	Voltage:	380V
Dimension(LWH):	1.5x2.2x2.7m	Weight:	2000KG
Warranty:	1 Year	After-sales Service Provided:	Engineers Available To Service Machinery Overseas
Rubber:	Rubber Parts Cooling Machine	Power:	0.75KWx2
Port:	Ningbo

Product Description

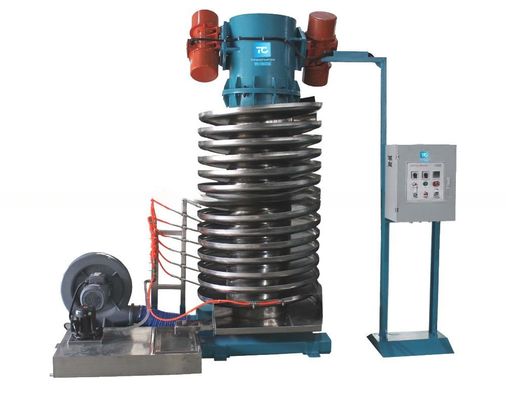

Barwell Vibracool Machine/ Vibratory Cooling Machine/Spiral Rubber Cooling Machine:

Vibrating cooler/ cooling conveyer is a space-saving type cooling conveyor specifically developed for the effective cooling, separation and drying of hot rubber preformed by theRubber Preformer.

Specification

Items	Unit	LSX1150
Groove diameter	mm	1150
Groove width	mm	330
Groove height	mm	1900
Max. distance travel	mm	55000
Helical pitch	mm	120
Feeding width	mm	700
Height of inlet	mm	320
Conveying speed	m/min	6~8
Motor power	KW	0.75*2
External Dimension (L×W×H)	m	1.5×2.2×2.7
Weight	T	2
