Product Details:
|
| Condition: | New | Voltage: | 380V |
|---|---|---|---|
| Dimension(L*W*H): | According To Model | Weight: | 18000 KG |
| Warranty: | 1 Year After Shipment | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| EVA/PE: | EVA/PE Foaming Press | MACHNE: | EVA/PE Hydraulic Press |
| Equipment: | EVA/PE Vulcanizing Press | Power: | 11KW |
| Port: | Shanghai |

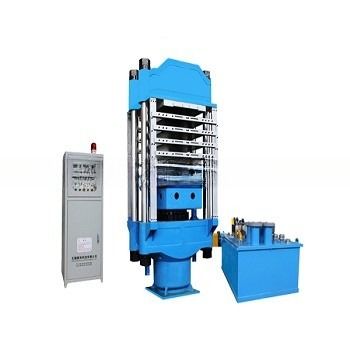

EVA/PE foaming Press/EVA/PE foam vulcanizing Press/EVA hydraulic press :
The EVA/PE foam Vulcanizing press is used for foaming EVA, PE rubber, which is widely used in shoe material manufacturing, foaming floor glue, thermal keeping material, luggage liner, sporting prevention material, diving dress material and life vest material, etc.
Item | Model | Total pressure | Cylinder diameter | Platen size | Daylight | Layers | Column Span | Motor power |
Ton | mm | mm | mm | mm | kw | |||
1 | MXF-250T | 250 | 380 | 800*1000 | 140 | 4 | 1000 | 7.5 |
2 | MXF-300T | 300 | 450 | 900*1100 | 150 | 4 | 1000 | 7.5 |
3 | MXF-500T | 500 | 560 | 1000*1200 | 150 | 4 | 1300 | 11 |
4 | MXF-650T | 650 | 650 | 1100*1350 | 150 | 6 | 1400 | 11 |
5 | MXF-850T | 850 | 762 | 1200*1500 | 150 | 6 | 1600 | 15 |
6 | MXF-1000T-A | 1000 | 813 | 1350*1700 | 150 | 6 | 1800 | 22 |
7 | MXF-1000T-B | 1000 | 813 | 1200*1500 | 150 | 6 | 1500 | 22 |
8 | MXF-1100T | 1100 | 838 | 1350*1700 | 150 | 6 | 1800 | 22 |
9 | MXF-1350T-A | 1350 | 915 | 1350*1800 | 180 | 6 | 1800 | 22 |
10 | MXF-1350T-B | 1350 | 915 | 1350*1500 | 150 | 6 | 1500 | 22 |
11 | MXF-1650T-A | 1650 | 1016 | 1400*2200 | 180 | 6 | 1800 | 30 |
12 | MXF-1650T-B | 1650 | 1016 | 1500*2400 | 200 | 9 | 2200 | 30 |
