Product Details:
|
| Condition: | New | Machine Type: | Plate Vulcanizing Press |
|---|---|---|---|
| Voltage: | 380V | Dimension(L*W*H): | According To Model |
| Weight: | 18000 KG | Warranty: | 1 Year After Shipment |
| Key Selling Points: | Long Service Life | Showroom Location: | Turkey |
| Applicable Industries: | Manufacturing Plant | After Warranty Service: | Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service |
| Local Service Location: | Turkey | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| EVA/PE: | EVA/PE Foaming Press | MACHNE: | EVA/PE Hydraulic Press |
| Equipment: | EVA/PE Vulcanizing Press | Port: | Shanghai |

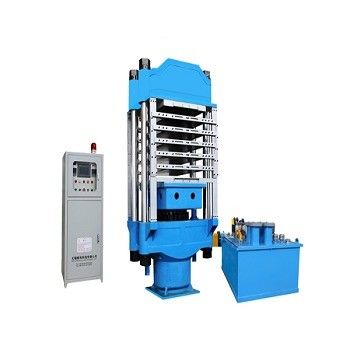

EVA/PE Foaming Machine/ EVA/PE Platen Vulcanizing Press :
The EVA/PE foam Vulcanizing press is used for foaming EVA, PE rubber, which is widely used in shoe material manufacturing, foaming floor glue, thermal keeping material, luggage liner, sporting prevention material, diving dress material and life vest material, etc.
Item | Model | Total pressure | Cylinder diameter | Platen size | Daylight | Layers | Column Span | Motor power |
Ton | mm | mm | mm | mm | kw | |||
1 | MXF-250T | 250 | 380 | 800*1000 | 140 | 4 | 1000 | 7.5 |
2 | MXF-300T | 300 | 450 | 900*1100 | 150 | 4 | 1000 | 7.5 |
3 | MXF-500T | 500 | 560 | 1000*1200 | 150 | 4 | 1300 | 11 |
4 | MXF-650T | 650 | 650 | 1100*1350 | 150 | 6 | 1400 | 11 |
5 | MXF-850T | 850 | 762 | 1200*1500 | 150 | 6 | 1600 | 15 |
6 | MXF-1000T-A | 1000 | 813 | 1350*1700 | 150 | 6 | 1800 | 22 |
7 | MXF-1000T-B | 1000 | 813 | 1200*1500 | 150 | 6 | 1500 | 22 |
8 | MXF-1100T | 1100 | 838 | 1350*1700 | 150 | 6 | 1800 | 22 |
9 | MXF-1350T-A | 1350 | 915 | 1350*1800 | 180 | 6 | 1800 | 22 |
10 | MXF-1350T-B | 1350 | 915 | 1350*1500 | 150 | 6 | 1500 | 22 |
11 | MXF-1650T-A | 1650 | 1016 | 1400*2200 | 180 | 6 | 1800 | 30 |
12 | MXF-1650T-B | 1650 | 1016 | 1500*2400 | 200 | 9 | 2200 | 30 |
