Product Details:
|
| Condition: | New | Voltage: | 380V |
|---|---|---|---|
| Dimension(L*W*H): | According To Model | Weight: | 18000 KG |
| Warranty: | 1 Year | Applicable Industries: | Manufacturing Plant |
| After-sales Service Provided: | Field Installation, Commissioning And Training, Field Maintenance And Repair Service, Online Support, Video Technical Support, Engineers Available To Service Machinery Overseas | EVA/PE: | EVA/PE Foaming Press |
| MACHNE: | EVA/PE Hydraulic Press | Equipment: | EVA/PE Vulcanizing Press |
| Power: | 11KW | Port: | Shanghai |

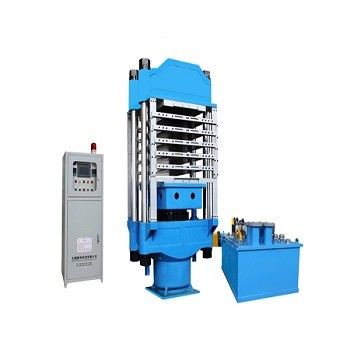

Vulcanizing Press/ EVA/PE Foaming Machine/ EVA/PE Vulcanizing Machine;
EVA/PE foam sheet making machine/EVA&PE foam plate vulcanizing press :
The EVA/PE foam Vulcanizing press is used for foaming EVA, PE rubber, which is widely used in shoe material manufacturing, foaming floor glue, thermal keeping material, luggage liner, sporting prevention material, diving dress material and life vest material, etc.
Item | Model | Total pressure | Cylinder diameter | Platen size | Daylight | Layers | Column Span | Motor power |
Ton | mm | mm | mm | mm | kw | |||
1 | MXF-250T | 250 | 380 | 800*1000 | 140 | 4 | 1000 | 7.5 |
2 | MXF-300T | 300 | 450 | 900*1100 | 150 | 4 | 1000 | 7.5 |
3 | MXF-500T | 500 | 560 | 1000*1200 | 150 | 4 | 1300 | 11 |
4 | MXF-650T | 650 | 650 | 1100*1350 | 150 | 6 | 1400 | 11 |
5 | MXF-850T | 850 | 762 | 1200*1500 | 150 | 6 | 1600 | 15 |
6 | MXF-1000T-A | 1000 | 813 | 1350*1700 | 150 | 6 | 1800 | 22 |
7 | MXF-1000T-B | 1000 | 813 | 1200*1500 | 150 | 6 | 1500 | 22 |
8 | MXF-1100T | 1100 | 838 | 1350*1700 | 150 | 6 | 1800 | 22 |
9 | MXF-1350T-A | 1350 | 915 | 1350*1800 | 180 | 6 | 1800 | 22 |
10 | MXF-1350T-B | 1350 | 915 | 1350*1500 | 150 | 6 | 1500 | 22 |
11 | MXF-1650T-A | 1650 | 1016 | 1400*2200 | 180 | 6 | 1800 | 30 |
12 | MXF-1650T-B | 1650 | 1016 | 1500*2400 | 200 | 9 | 2200 | 30 |
