Product Details:
|
| Condition: | New | Machine Type: | Plate Vulcanizing Press |
|---|---|---|---|
| Voltage: | 380V | Dimension(L*W*H): | 8110x1560x2080 Mm |
| Weight: | 10500 | Warranty: | 1 Year |
| Key Selling Points: | Long Service Life | Showroom Location: | Turkey |
| Applicable Industries: | Manufacturing Plant | After Warranty Service: | Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service |
| Local Service Location: | Turkey | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| Hydraulic Press: | For Rubber Sole | Port: | Shanghai |

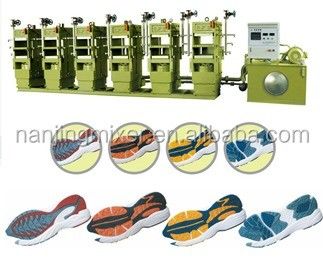

Rubber Sole Molding Press/Rubber Sole Making machine/Rubber Sole Hydraulic Press/Vulcanizing Press for rubber sole :

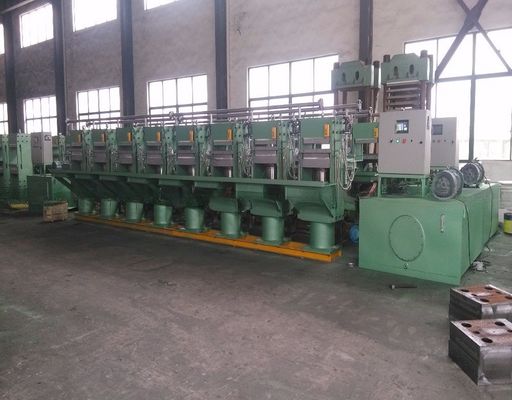

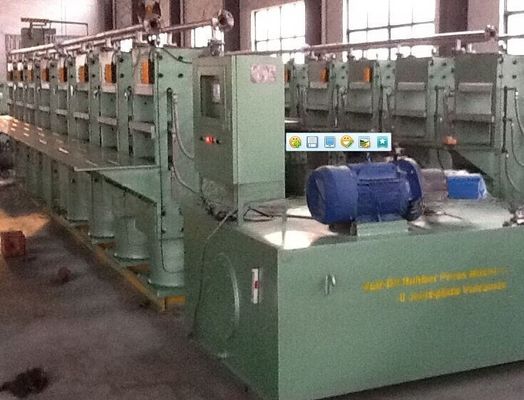

This is machine is used to produce rubber sole,6 working station,control separate by one control centre.
Technical characteristics:
1. Body made of high strength steel castings, not broken, no distortion, extended machine life.2. The machine adopts PLC control system can operate independently, thereby increasing production volume.
3. Hydraulic control system, adopt international famous brand components, improving mechanical performance.
4. Peripheral emergency button in order to ensure safety of the operator, as well as the mold is not damaged.
5. Each station vulcanization time and movement program can be arbitrarily set by the interface, easy to operate.
Working station: 6
Clamping force: 150 Ton
Platen size: 450x500mm
Working layers: 2
Platen distance: 180mm
Piston diameter: 300mm
Power: 15 KW
Dimension:8110x1560x2080 mm
Weight: 10500kg.
