Competitive Automatic Vacuum Rubber Ring Cutting Machine for Manufacturing Industry

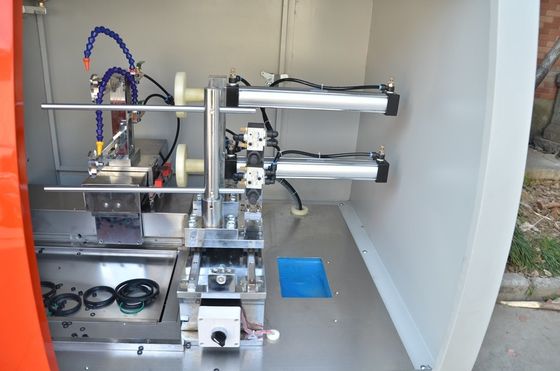

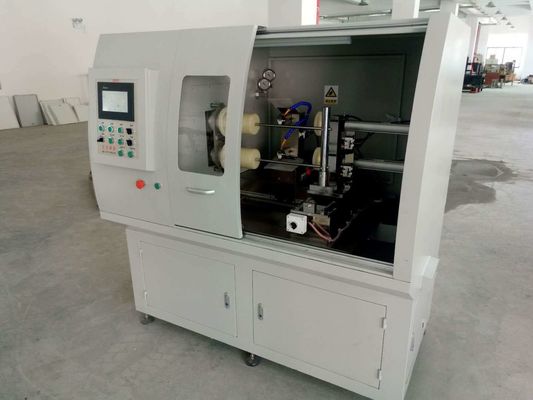

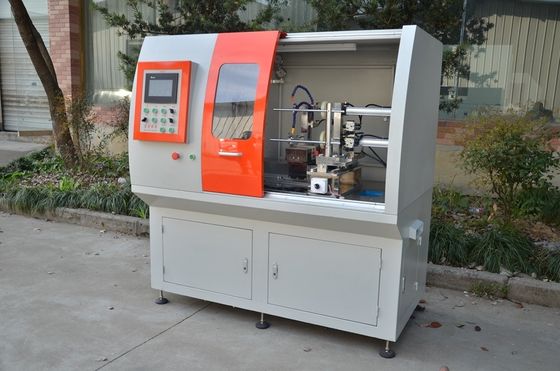

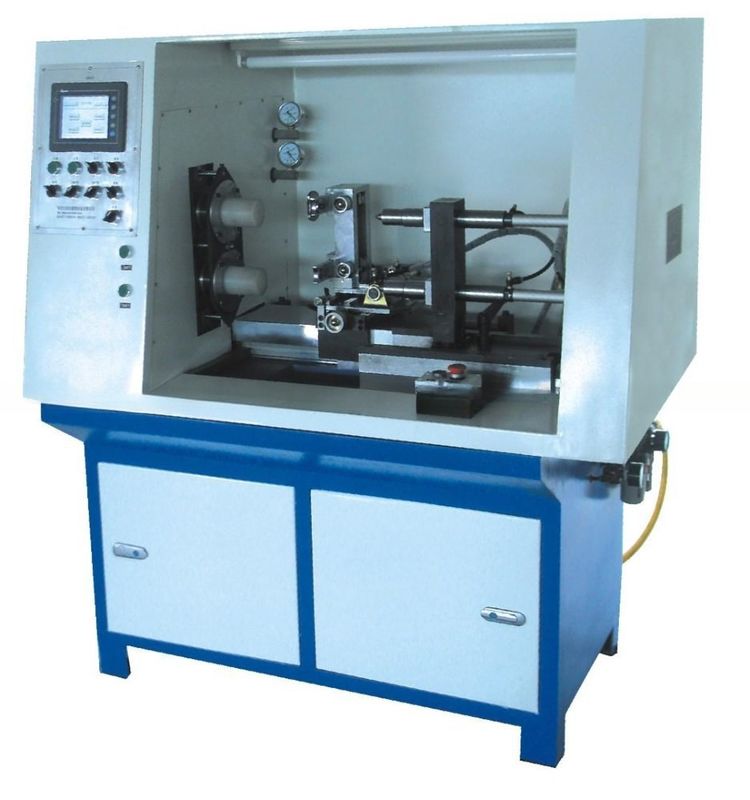

Large Image : Competitive Automatic Vacuum Rubber Ring Cutting Machine for Manufacturing Industry

Product Details:

Place of Origin:	China
Brand Name:	Mixer
Certification:	CE

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	$3,000.00 - $9,999.00/sets
Packaging Details:	wooden case package
Delivery Time:	20-30days
Payment Terms:	T/T
Supply Ability:	30sets per months

Contact Now

Competitive Automatic Vacuum Rubber Ring Cutting Machine for Manufacturing Industry

Description

Condition:	New	Machine Type:	Rubber Washer Cutting Machine
Voltage:	380V	Dimension(LWH):	130x90x150cm
Weight:	300 KG	Warranty:	1 Year
Key Selling Points:	Long Service Life	Showroom Location:	Turkey
Applicable Industries:	Manufacturing Plant	After Warranty Service:	Video Technical Support, No Service, Spare Parts, Field Maintenance And Repair Service
Local Service Location:	Turkey	After-sales Service Provided:	Engineers Available To Service Machinery Overseas
Rubber Cutter:	Rubber Washer Cutting Machine	Rubber Tube:	Rubbe Ring Cutting Machine
Cutter:	Vacuum Rubber Tube Cutting Machine	Port:	Shanghai

Product Description

Automatic Vacuum Cutting Machine for rubber ring/ rubber washer cutting machine :

Application:

Fast cut of all kinds of rubber, silicone gaskets/ washer, ring-shaped tubular products.

Features:

1. When the cut is finished, materials take off automatically, and through the collection boxes to gather the cut products.

2. Vacuum adsorption of the cut product, so ensuring the finished product more precise.

3. Automatic air blowing function makes loading and unloading more convenient , greatly improve the product cutting efficiency;

4. Using color LCD touch screen control, operation is extremely simple.

5. All electrical components, pneumatic components are imported from abroad or domestic famous brand products, to ensure long-term use, reliability and stability of the new machine.

6. According to customer requirements, choose to install a round knife or column knife, ensuring cost saving on the cutter.

Specification

Cutting efficiency	>60 times/minute
Working rotating speed	0~2000r/min
Cutting precision	≤±0.05mm
Cutting diameter	Φ10mm~Φ230mm
Cutting length	Standard type≤100mm or lengthen type≤350mm
Wall thickness of the rubber tube	≤12mm
Finished product thickness	≥0.02mm
Cutter specification	(1)round cutter:Φ76×Φ25.4×Φ0.3mm (2)column cutter:70×8×0.3mm
Compressed air consunption	20L/min
Air pressure	0.5MPa~0.8MPa
Working vacuum degree	≤-0.035MPa
Electric power	AC220V±5%
Total power	1KW
Weight	≈260Kg
Dimension of the machine(L×W×H)	130cm×90cm×150cm
