Product Details:
|
| Type: | Rubber Filter | Condition: | New |
|---|---|---|---|
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Warranty Of Core Components: | 2 Years | Core Components: | Engine, Gearbox, Motor |
| Voltage: | 220V/380V/460V | Dimension(L*W*H): | 2960x1110x950mm |
| Warranty: | 1 Year | Key Selling Points: | Competitive Price |
| Power (kW): | 45 KW | Weight (KG): | 4500 KG |
| Applicable Industries: | Manufacturing Plant | Showroom Location: | Turkey |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas, Field Installation, Commissioning And Training | Rubber Machine: | Rubber Fitler Machine |
| Marketing Type: | Ordinary Product | After Warranty Service: | Video Technical Support, Online Support, Field Maintenance And Repair Service |
| Local Service Location: | Turkey | Port: | Shanghai |

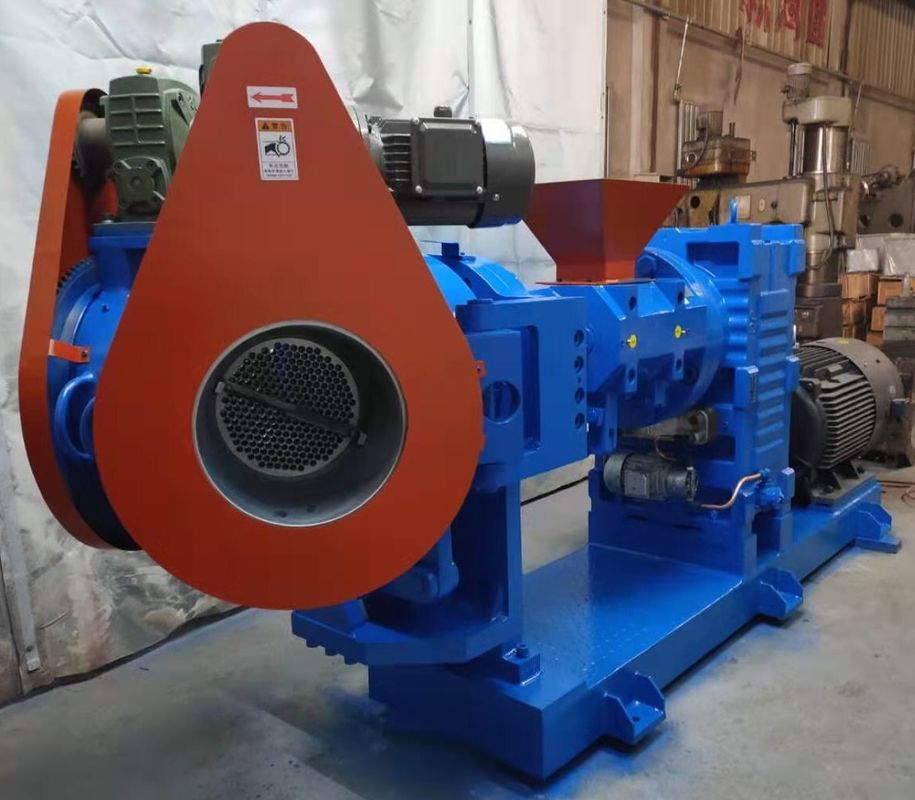

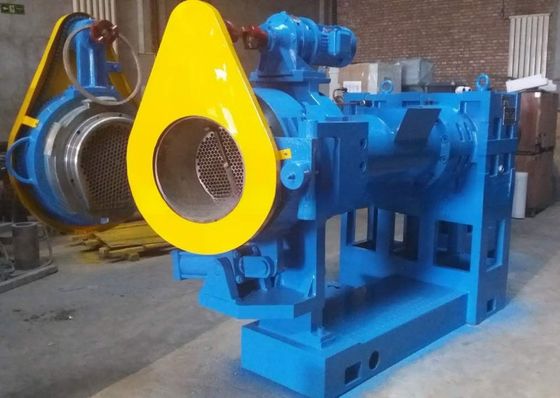

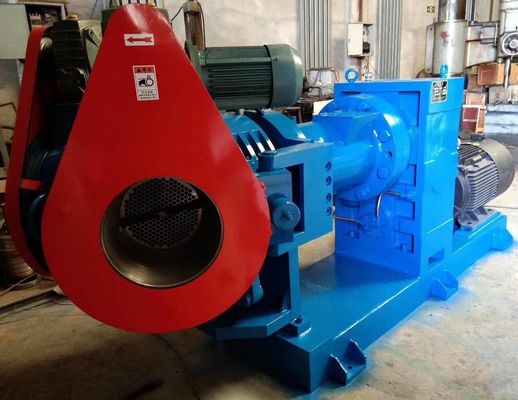

The rubber filtering machine is used for filtering/screening impurity from natural rubber and reclaimed rubber,etc.
| Model | Screw Diamter (mm) | L/D | Screw Rotation (r/min) | Centre height of the feeding hole (mm) | Max.Output (Kg/h) | Motor Power (KW) | Weight (Kg) | Dimension (LxKxH:mm) |
| XJL-150 | 150 | 5:1 | 49 | 900 | 450 | 45 | 4500 | 2960x1110x950 |
| XJL-200 | 200 | 5:1 | 50 | 950 | 900 | 75 | 7500 | 3500x990x1630 |
| XJL-250 | 250 | 5:1 | 45 | 1200 | 1600 | 110 | 9500 | 4950x1400x1483 |
