Product Details:
|
| Condition: | New | Voltage: | 220V/380V |
|---|---|---|---|
| Dimension(L*W*H): | 1200x1790x1980mm | Warranty: | 1 Year |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Power: | 15KW |
| Port: | Shanghai |

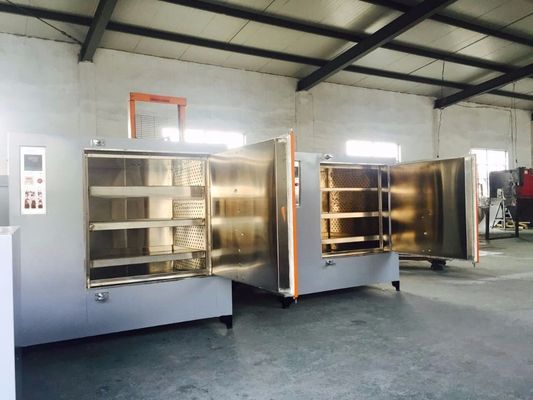

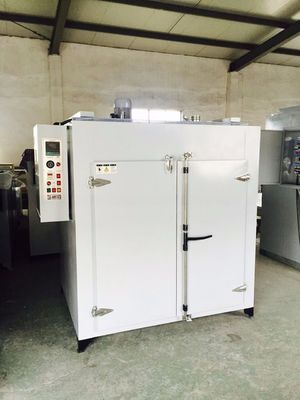

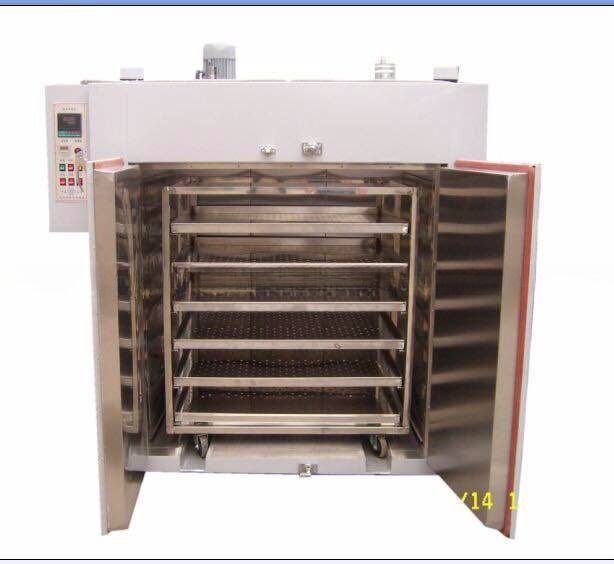

Post Curing Oven applies to secondary vulcanization for silicone rubber, silicone mold curing, vulcanized silicone of food industry, curing molded medical silicone, silicone hose post curing, for baking, drying, finalizing formation.
Model | Working Chamber size (DxWxH:mm) | Working Chamber Volume: Liter | Working temperature range (℃) | Temperature uniformity (℃) | Total Power (KW) | Voltage | Overall Size (DxWxH:mm) |
XT-1 | 350x450x450 | 70L | RT~300 | ±2.5~3 | 2 | 220V | 550x970x900 |
XT-2 | 450x550x550 | 136L | RT~300 | ±2.5~3 | 3 | 220V | 650x1070x1000 |
XT-3 | 500x600x750 | 225L | RT~300 | ±2.5~3 | 4.5 | 380V | 700x1120x1200 |
XT-4 | 800x800x1000 | 640L | RT~300 | ±2.5~3 | 9 | 380V | 1000x1320x1460 |
XT-5 | 1000x1000x1000 | 1000L | RT~300 | ±2.5~3 | 12 | 380V | 1200x1520x1460 |
XT-6 | 1000x1200x1200 | 1440L | RT~300 | ±2.5~3 | 15 | 380V | 1200x1790x1980 |
XT-7 | 1000x1200x1500 | 1800L | RT~300 | ±2.5~3 | 18 | 380V | 1200x1790x2280 |
XT-8 | 1200x1500x1500 | 2700L | RT~300 | ±2.5~3 | 21 | 380V | 1400x2090x2280 |
