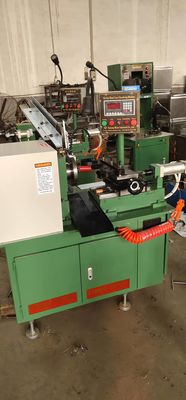

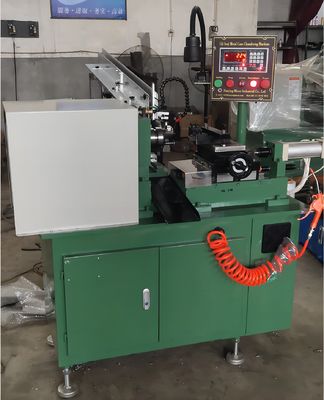

The Automatic Oil Seal Iron Shell End Cutting& Beveling Angle Machine is suitable for end cutting & angle beveling on iron shells such as oil seal metal cases,and other round metal sleeves,metal cups,etc.

Automatic Feeding of Iron shells on a Die for end cutting or angle beveling. High Efficiency & precise processing.

Loading the Iron shells manually in line in the feeding guide→ Iron shells are delivered forward by the Conveyor → Robot Grip & Feeds Iron shells on the Collet and Clamping → Rotation→End cutting or Angle Bevleing→Finished Iron shells are unloaded automatically.

Models for options:

There are various specifications available for options as per the iron shell sizes (diameter), options as below:

-φ20~60 mm

-φ30~100 mm

-φ50~130 mm

-φ70~160 mm

-φ120~220 mm
