400mm Rubber Roll Open Mixing Mill Perfect for Your Mixing Requirements

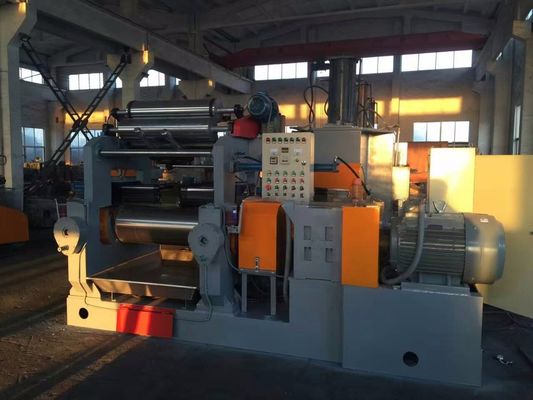

Large Image : 400mm Rubber Roll Open Mixing Mill Perfect for Your Mixing Requirements

Product Details:

Place of Origin:	China
Brand Name:	Mixer
Certification:	CE

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	$10,000.00 - $99,999.00/sets
Packaging Details:	film wrap into container
Delivery Time:	60days
Payment Terms:	T/T
Supply Ability:	60DAYS

Contact Now

400mm Rubber Roll Open Mixing Mill Perfect for Your Mixing Requirements

Description

Diameter Of Roll(mm):	400 Mm	Length Of Roll(mm):	1000 Mm
Video Outgoing-inspection:	Provided	Machinery Test Report:	Provided
Warranty Of Core Components:	1 Year	Core Components:	PLC, Engine, Bearing, Motor, Pressure Vessel, Gear
Condition:	New	Voltage:	380v
Dimension(LWH):	449x170 X175cm	Warranty:	1 Year
Key Selling Points:	Long Service Life	Power (kW):	45
Weight (KG):	9000 KG	Applicable Industries:	Manufacturing Plant
Showroom Location:	Turkey	After Warranty Service:	Spare Parts
After-sales Service Provided:	Engineers Available To Service Machinery Overseas	Working Length Of Roll:	1000
Fraction Ratio Of Rolls:	1:1.27	Marketing Type:	New Product 2020
Port:	Shanghai,Ningbo

Product Description

Rubber roll open mixing mill/two-roll rubber mixing mill with stock blender/small rubber mixing mill

Used for rubber&plastic mixing,sheeting.

Features:

· Tailored structure,stable performance, easy to operate.

· There are varied speeds and fraction ratios available, which can satisfy most customers’ formula and processing requirements.

· Frame, frame cap and base, looking very nice, are welded and treated by annealing for stress relieving.

· Chilled alloy cast iron roll is abrasion resistant with long service life.

· The speed reducer is the hard-tooth surface gear reducer of Class 6 precision, which has long service life and low noise.

· Perfect emergency stop device can ensure the safety of personnel and equipment.

· The seal structure with special design can eliminate the leaking phenomenon of lubricating oil.

· Stock pan is easy to clean up with dislodging device.

· Human nature designed operating system reduces labor intensity.

· Modular structure offers various structures for customers’ option.

· The flexible design system can satisfy customers’ special design requirements within the shortest time.

· A load test running will be made to the assembled equipment in our company to save debugging time for customers.

Specification

Model		X(S)K-160	X(S)K -250	X(S)K -360	X(S)K -400	X(S)K -450	X(S)K -550	X(S)K-660
Diameter of rolls		160	250	360	400	450	550	660
Working length of roll		320	620	900	1000	1200	1500	2130
Working speed of front roll		8.95	14.9	17.4	19.3	23.1	28.6	30
Fraction ratio of rolls		1:1.35	1:1.1	1:1.27	1:1.27	1:1.27	1:1.29	1:1.05
Max.gap(mm)		5	8	10	10	10	15	15
Nip regulating mode		Manual	Manual	Manual	Manual or Electric	Manual or Electric	Manual or Electric	Electric
Batch capacity(Kg)		1-2	10-15	20-15	25-35	30-50	50-60	120-140
Motor	Power	5.5	15	30	45	55	90/110	180
Motor	Motor speed(r/m)	1440	730	980	740	980	740	740
Reducer		Full closed type hardened gear speed reducer
Reduction ratio		43	35	49.7	38	47.2	35.6	126.2
Overall dimension (mm)		1120x920 X1295	3400x1270 X1620	4140x1770 X1700	4490x1700 X1750	5570x1900 X1750	6290x2330 X1780	7500x 2630x2060
Weight (kg)		1100	4200	7600	9000	11500	20000	26500
