Product Details:
|
| Condition: | New | Video Outgoing-inspection: | Provided |
|---|---|---|---|
| Machinery Test Report: | Provided | Warranty Of Core Components: | 5 Years |
| Core Components: | PLC, Engine, Bearing, Gear | Machine Type: | Rubber Calender Machine |
| Voltage: | 220V/380V/415V.440V | Dimension(L*W*H): | As Customers' Requirements |
| Weight: | 45 | Warranty: | 1 Year |
| Key Selling Points: | Famous Brand PLC | Showroom Location: | None |
| Applicable Industries: | Manufacturing Plant | Calender: | Fiber Cord Fabric Add Tension Calender |
| Power(W): | 144 KW | After-sales Service Provided: | Field Installation, Commissioning And Training |
| After Warranty Service: | Video Technical Support |
calendering fabric/calendar roller / rubber calender machine/calendered sheet
Application:

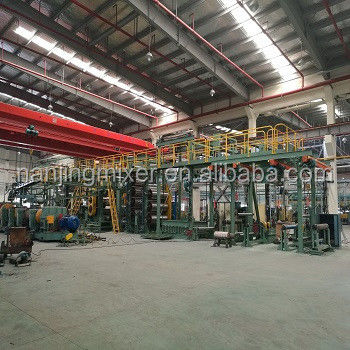

The fiber cord fabric add tension calendering line is used for coating rubber for fiber cord fabric.
The production line includes: Letoff device,Front tension rack,Rear tension rack,cooling traction machine,
rear cloth storage,rear traction machine,wind-up device,etc.
Main tension zone is installed with tension protector for display,and with width expansion and edge expansion device,and 4 sets of motor-set-center devices,ensuring cord fabric smooth without deformation. Electric control adopt PLC and full digital speed adjusting device.
| Model | Mid-roller liner speed(m/min) | Thickness for calendering(mm) | Calendering width(mm) | Motor power(KW) | Overall dimension(LxWxH)(mm) | Weight(t) |
| XY-4Γ1600 | 3.5~30 | ≥0.20 | 1400 | 144 | 6270x2960x4100 | 45 |
| XY-4Γ1730 | 5.4~54 | ≥0.20 | 1500 | 240 | 7050x4150x3750 | 63 |
| XY-4S1730 | 6~60 | ≥0.20 | 1500 | 90(1#4#)110(2#3#) | 5600x1410x2385 | 85 |
| XY-4S1850 | 7~70 | ≥0.20 | 1500 | 90(1#4#)110(2#3#) | 8700x4250x5050 | 112 |
Nanjing Mixer Industrial Co., Ltd is the rubber machines producer and exporte,hope to cooperate with you.
Tel: 86-025-52631617
