Product Details:
|
| Condition: | New | Voltage: | 380V/440V/480V |
|---|---|---|---|
| Dimension(L*W*H): | 4300x1630x1450mm | Weight: | 7000 |
| Warranty: | 1 Year | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| Color: | White | Power: | 110KW |
| Port: | Shanghai |

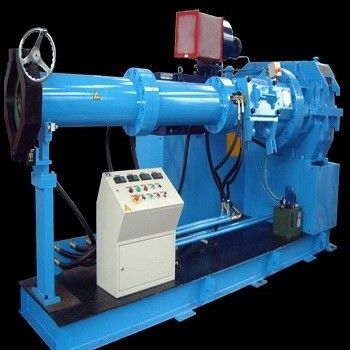

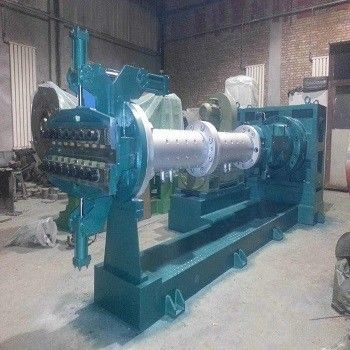

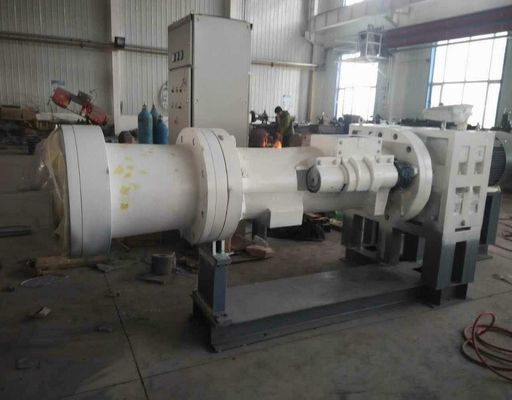

This extruder is specially designed to produce inner tube of NR and butyl rubber used for bicyle, electric cycle, motor cycle, truck,engineering vehicle.
Model | Screw Diameter (mm) | Screw L/D | Screw Rotation Speed (r/m) | Motor Power (KW) | Max.Production capacity (kg/hr) | Dimension (LxWxH:mm) | Weight (Kg) | Application for inner tube |
XJ-120x6D | 120 | 6:1 | 0~60 | 30KW | 420 | 2800x900x1200 | 2500 | Bicycle ,electric cycle |
XJ-150x6D
| 150 | 6:1 | 0~70 | 55KW | 1050 | 3300x1050x1360
| 5000 | Motor cycle, farm vehicle |
XJ-200x6D
| 200 | 6:1 | 0~58 | 75KW | 1700 | 3900x1250x1515
| 6500 | truck |
XJ-250x6D
| 250 | 6:1 | 0~55 | 110KW | 3300 | 4300x1630x1450
| 7500 | Engineering inner tube |
