high speed vacuum degassing pin barrel EPDM rubber sheet extruder machine for sale

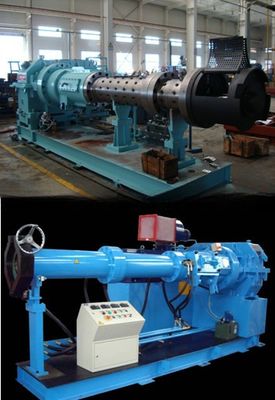

Large Image : high speed vacuum degassing pin barrel EPDM rubber sheet extruder machine for sale

Product Details:

Place of Origin:	Jiangsu, China
Brand Name:	Mixer
Certification:	CE

Payment & Shipping Terms:

Price:	$30,000.00/sets >=1 sets
Packaging Details:	Film packed in container.
Supply Ability:	20 Set/Sets per Month

Contact Now

high speed vacuum degassing pin barrel EPDM rubber sheet extruder machine for sale

Description

Condition:	New	Output (kg/h):	1200 Kg/h
Screw Diameter (mm):	150 Mm	Video Outgoing-inspection:	Provided
Machinery Test Report:	Provided	Warranty Of Core Components:	5 Years
Core Components:	PLC, Engine, Bearing, Motor	Voltage:	380V
Dimension(LWH):	3500x1580x1550mm	Power (kW):	185
Weight (KG):	8000 KG	Warranty:	1 Year
Key Selling Points:	High-accuracy	Showroom Location:	None
Applicable Industries:	Manufacturing Plant	Type:	Rubber Extruder
L/D:	(10-18):1	Output (Kg/h):	1200
Weight:	8000KG	After-sales Service Provided:	Video Technical Support
After Warranty Service:	Online Support	Port:	Shanghai

Product Description

Rubber Extruder

Rubber Extruders are usually designed to extruder rubber semi-finished articles for tire industry, such as sidewalls, treads or apex. They can also be equipped with different heads and become perfect for profile extrusion. Different sizes and configurations are possible: type of head, die size, clamp type

Specification

Model/Diameter (mm)	L/D	Power (KW)	Screw Speed (RPM)	Output (Kg/h)
XJD-60	(6-16):1	11-37	80	120
XJD-90	(10-20):1	30-75	60	350
XJD-120	(10-18):1	45-110	50	650
XJD-150	(10-18):1	75-255	45	1200
XJD-200	(10-18):1	185-355	28	2200
XJD-250	(4-12):1	185-500	26	3000
