Product Details:
|
| Type: | Rubber Extruder | Condition: | New |
|---|---|---|---|
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Warranty Of Core Components: | 1 Year | Core Components: | Engine, Motor |
| Voltage: | 380V | Dimension(L*W*H): | 3500x1580x1550MM |
| Warranty: | 1 Year | Key Selling Points: | Automatic |
| Power (kW): | 185 KW | Weight (KG): | 8000 KG |
| Applicable Industries: | Manufacturing Plant | Showroom Location: | None |
| L/D: | (10-18):1 | Screw Speed (RPM): | 45 |
| Power(W): | 75-255kw | After-sales Service Provided: | Field Installation, Commissioning And Training |
| After Warranty Service: | Video Technical Support | Marketing Type: | Hot Product 2019 |

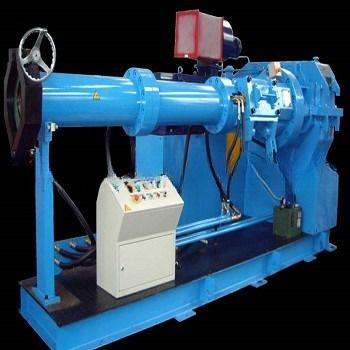

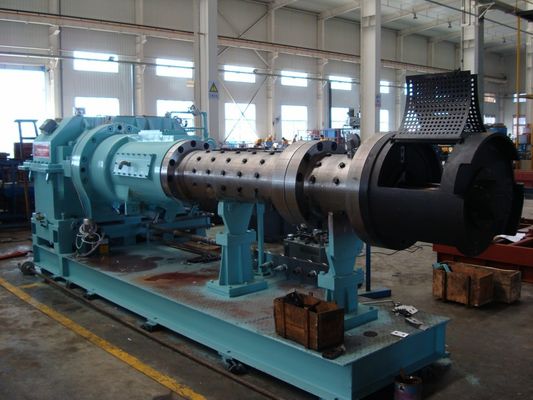

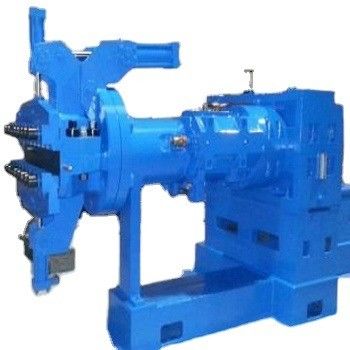

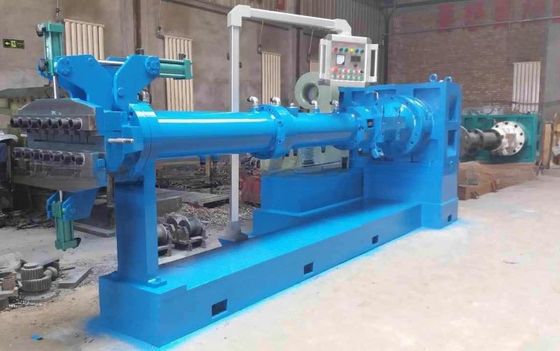

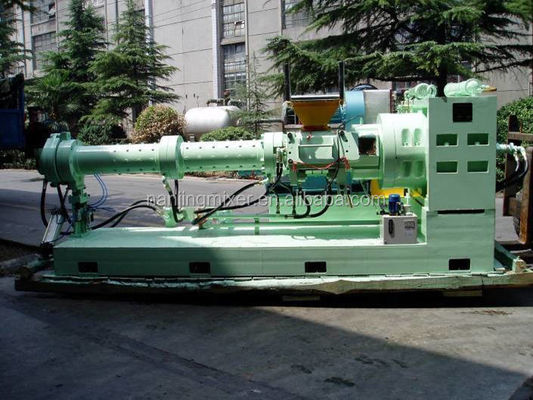

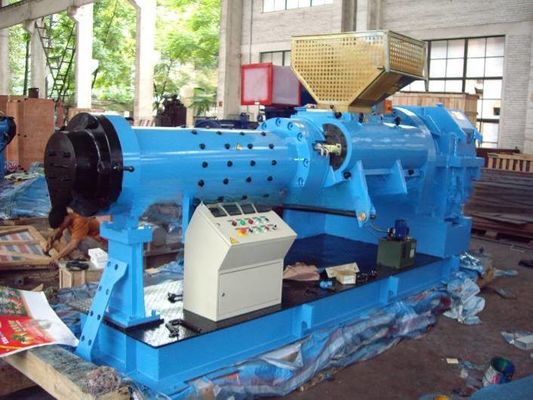

XJD150 cold feed rubber sheet extruder machine
| Model/Diameter (mm) | L/D | Power (KW) | Screw Speed (RPM) | Output (Kg/h) |
| XJD-60 | (6-16):1 | 11-37 | 80 | 120 |
| XJD-90 | (10-20):1 | 30-75 | 60 | 350 |
| XJD-120 | (10-18):1 | 45-110 | 50 | 650 |
| XJD-150 | (10-18):1 | 75-255 | 45 | 1200 |
| XJD-200 | (10-18):1 | 185-355 | 28 | 2200 |
| XJD-250 | (4-12):1 | 185-500 | 26 | 3000 |
Machine details:
