Rubber Extruder TPU Tire Patch Making Machine with 1200 Kg/h Output

Large Image : Rubber Extruder TPU Tire Patch Making Machine with 1200 Kg/h Output

Product Details:

Place of Origin:	Jiangsu, China
Brand Name:	Mixer
Certification:	CE

Payment & Shipping Terms:

Price:	$10,000.00 - $100,000.00/sets
Packaging Details:	Film packed in container.
Supply Ability:	20 Set/Sets per Month

Contact Now

Rubber Extruder TPU Tire Patch Making Machine with 1200 Kg/h Output

Description

Type:	Rubber Extruder	Condition:	New
Video Outgoing-inspection:	Provided	Machinery Test Report:	Provided
Warranty Of Core Components:	5 Years	Core Components:	PLC, Engine, Bearing, Motor, Gear
Voltage:	380V	Dimension(LWH):	ACCORDING TO DIFFERENT MODEL
Warranty:	1 Year	Key Selling Points:	Automatic
Power (kW):	185 KW	Weight (KG):	8000 KG
Applicable Industries:	Manufacturing Plant	Showroom Location:	None
L/D:	(10-18):1	Screw Speed (RPM):	45
Output (Kg/h):	1200	Power(W):	75-255kw
After-sales Service Provided:	Field Installation, Commissioning And Training	After Warranty Service:	Video Technical Support
Marketing Type:	New Product 2020	Port:	Shanghai

Product Description

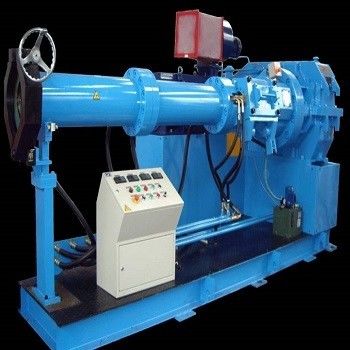

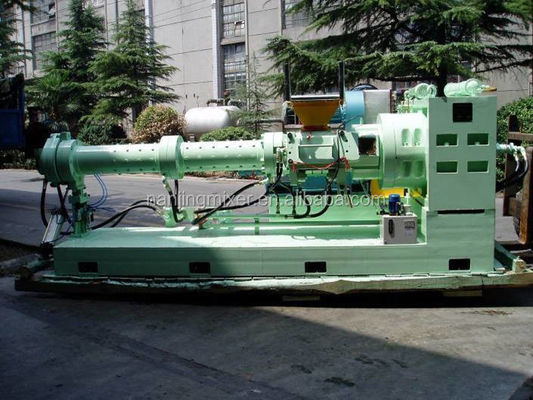

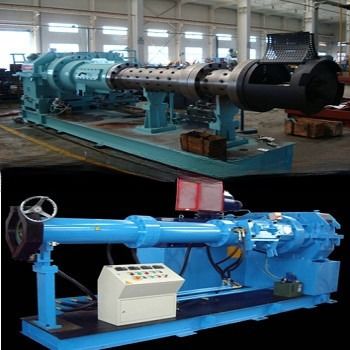

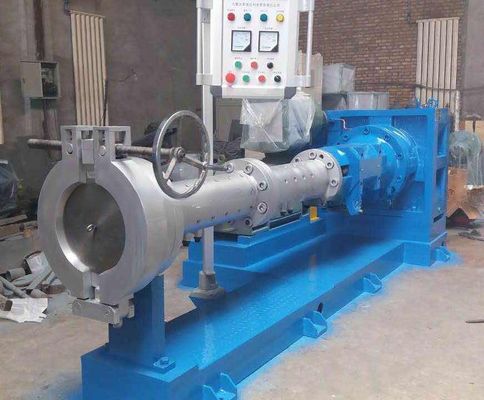

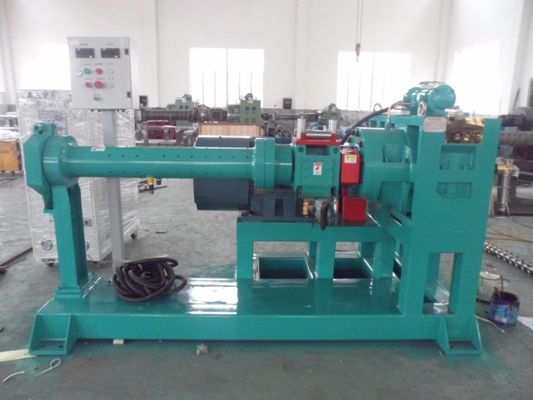

Rubber Extruder

laboratory extruder/rubber cold extruder/hdpe pipe extruder

Rubber Extruders are usually designed to extruder rubber semi-finished articles for tire industry, such as sidewalls, treads or apex. They can also be equipped with different heads and become perfect for profile extrusion. Different sizes and configurations are possible: type of head, die size, clamp type

Specification

Model/Diameter (mm)	L/D	Power (KW)	Screw Speed (RPM)	Output (Kg/h)
XJD-60	(6-16):1	11-37	80	120
XJD-90	(10-20):1	30-75	60	350
XJD-120	(10-18):1	45-110	50	650
XJD-150	(10-18):1	75-255	45	1200
XJD-200	(10-18):1	185-355	28	2200
XJD-250	(4-12):1	185-500	26	3000
