Product Details:
|
| Condition: | New | Output (kg/h): | 1200 Kg/h |
|---|---|---|---|
| Screw Diameter (mm): | 150 Mm | Screw Speed (rpm): | 1 - 45 Rpm |
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Warranty Of Core Components: | 2 Years | Core Components: | PLC, Engine, Motor, Gear |
| Voltage: | 380V | Dimension(L*W*H): | 3500x1580x1550mm |
| Power (kW): | 18.5 | Weight (KG): | 8000 KG |
| Warranty: | 1 Year | Key Selling Points: | High-accuracy |
| Showroom Location: | None | Applicable Industries: | Manufacturing Plant |

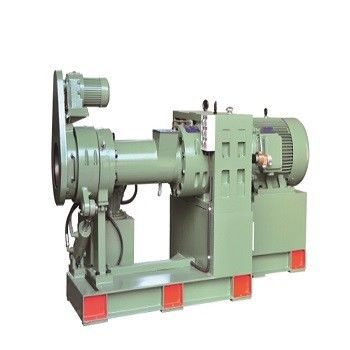

| Type: | Rubber Extruder | L/D: | (10-18):1 |
| Screw Speed (RPM): | 45 | Output (Kg/h): | 1200 |
| Power(W): | 75-255kw | After-sales Service Provided: | Video Technical Support |
| After Warranty Service: | Video Technical Support | Port: | Shanghai |
| Model/Diameter (mm) | L/D | Power (KW) | Screw Speed (RPM) | Output (Kg/h) |
| XJD-60 | (6-16):1 | 11-37 | 80 | 120 |
| XJD-90 | (10-20):1 | 30-75 | 60 | 350 |
| XJD-120 | (10-18):1 | 45-110 | 50 | 650 |
| XJD-150 | (10-18):1 | 75-255 | 45 | 1200 |
| XJD-200 | (10-18):1 | 185-355 | 28 | 2200 |
| XJD-250 | (4-12):1 | 185-500 | 26 | 3000 |

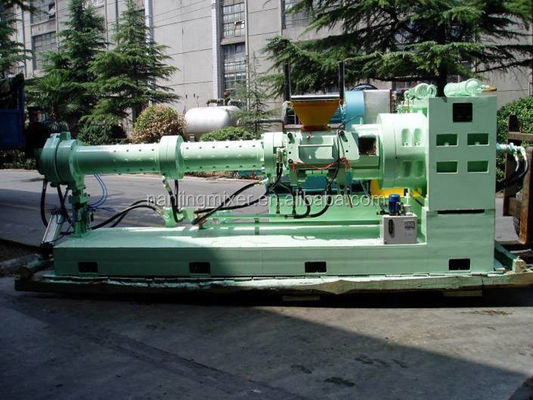

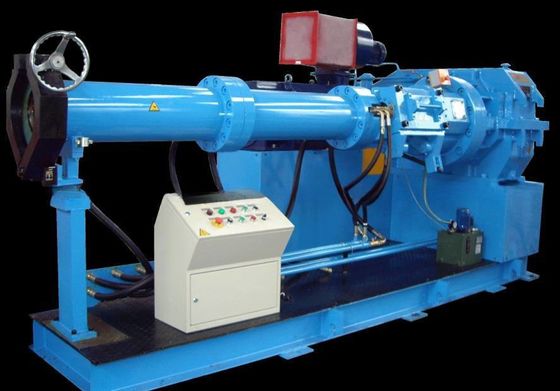

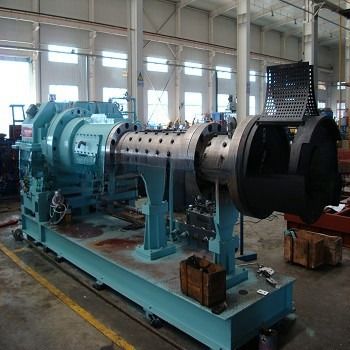

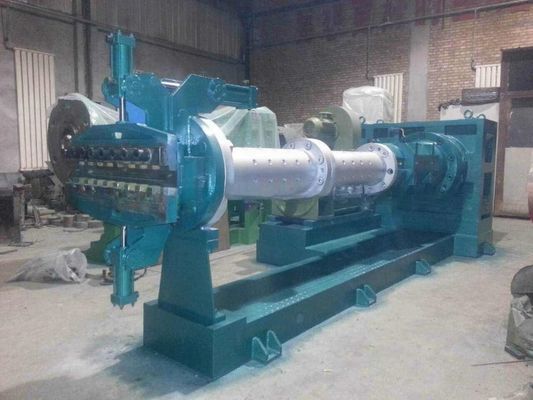

Machine details:
