Professional 1.5KW Rubber Strip Cutter/Slicing/Cutting Machine with CE Certification

Professional 1.5KW Rubber Strip Cutter/Slicing/Cutting Machine with CE Certification

Professional 1.5KW Rubber Strip Cutter/Slicing/Cutting Machine with CE Certification
Professional 1.5KW Rubber Strip Cutter/Slicing/Cutting Machine with CE Certification Professional 1.5KW Rubber Strip Cutter/Slicing/Cutting Machine with CE Certification Professional 1.5KW Rubber Strip Cutter/Slicing/Cutting Machine with CE Certification Professional 1.5KW Rubber Strip Cutter/Slicing/Cutting Machine with CE Certification Professional 1.5KW Rubber Strip Cutter/Slicing/Cutting Machine with CE Certification

Large Image :  Professional 1.5KW Rubber Strip Cutter/Slicing/Cutting Machine with CE Certification

Product Details:
Place of Origin: China
Brand Name: Mixer
Certification: CE
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: $4,800.00/sets >=1 sets
Packaging Details: wooden case package
Delivery Time: 20-30days
Payment Terms: T/T
Supply Ability: 30sets per months

Professional 1.5KW Rubber Strip Cutter/Slicing/Cutting Machine with CE Certification

Description
Condition: New Video Outgoing-inspection: Provided
Machinery Test Report: Provided Warranty Of Core Components: 5 Years
Core Components: PLC, Engine, Bearing, Motor, Gear Machine Type: Rubber Cutting Machine
Voltage: 380V Dimension(L*W*H): 1050x800x1100 Mm
Weight: 700 Warranty: 1 Year
Key Selling Points: Famous Brand PLC Showroom Location: None
Applicable Industries: Manufacturing Plant Certificate: CE
Power(W): 1.5KW After Warranty Service: Video Technical Support
Marketing Type: New Product 2020 Port: Shanghai



Product Description

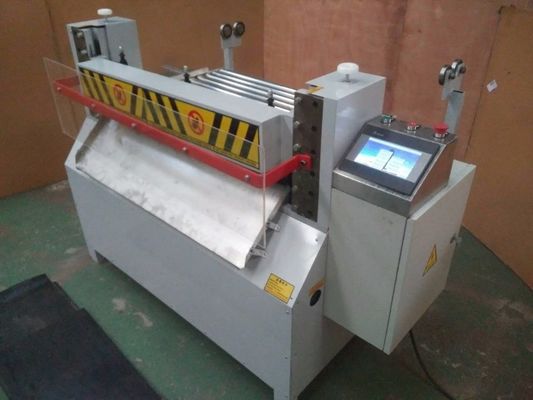

1.Our Rubber Strip Cutting Machine (Rubber Strip Cutter )is  optimized in structure and easy to operate.With glass plates positioning in front make the operation more secure. Feeding platform is made of pure mirror stainless steel, truly beautiful appearance and guarantees safe production, high automation, easy operation and low noise and has a good safety device, automatic lift feed roller device is also a friendly design.

2.Feed roller of Rubber Strip Cutting Machine (Rubber Strip Cutter) adopts high-precision dual-clutch, free to adjust the width of strip material from 1mm to 50 mm, at high precision cutting.

3.The blade of the machine is alloy inlaid high speed wear-resistant material, sharp and long life service.

4.More humanity NC electrical control system. (You can control the start switch(button) only cut one time ,after confirming the weight in need already, then converted to a continuous strip cut) and significantly increased the electrical life ,a simple operation, more convenient to use.

5.CNC type Rubber Strip Cutting Machine (CNC Rubber Strip Cutter)  is available for options:rubber feeding is controlled by PLC and stepper motor,with mechanical-spring material press roller  to make the rubber sheet feeding more accurate and smooth,improving the cut precision for the rubber strip.Easy operation, operator just input the desired width in the computer,the right width strip will be cut continuously.During cutting process, you can freely adjust the width of cut material as per your actual need.This CNC type Rubber Strip Cutting Machine,combining advanced CNC automatic mechanical and electric integration system,it overcome the problem for the normal strip cutting machine whose transmission parts could be wore after long time use.



Specification





Model

XQ-450

XQ-620

XQ-820

XQ-1000

Max. feeding rubber width(mm)

   450

   620

  820

  1000

Max. feeding rubber thickness(mm)

   20

  20

   20

   20

Max. cut stroke (strip width:mm)

50-70

50-70

50-70

50-70

Cut efficiency

  86 times/min

 86 times/min

 86 times/min

 86 times/min

Cut precision

    ±0.1mm

   ±0.1mm

    ±0.1mm

  ±0.1mm

Motor power(KW)

    1.5

1.5

     3

   3

Dimension(LxWxH:mm)

1050x700x1100



1050x800x1100



1400x1100x1200



1450x1240x1230



Weight(Kg)

500

750

 840

970



Finished Products

 newest Rubber strip cutter/Slicing/cutting Machine with cheap pricenewest Rubber strip cutter/Slicing/cutting Machine with cheap price
