Product Details:
|
| Condition: | New | Video Outgoing-inspection: | Provided |
|---|---|---|---|
| Machinery Test Report: | Provided | Warranty Of Core Components: | 1 Year |
| Core Components: | PLC, Engine, Motor | Machine Type: | Curing Oven |
| Voltage: | 220V/380V | Dimension(L*W*H): | 1200x1790x1980mm |
| Warranty: | 1 Year | Key Selling Points: | Accurate Temperature Control |
| Showroom Location: | Turkey | Applicable Industries: | Manufacturing Plant |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Marketing Type: | Ordinary Product |
| After Warranty Service: | Video Technical Support, Online Support, Spare Parts | Local Service Location: | Turkey |
| Port: | Shanghai |

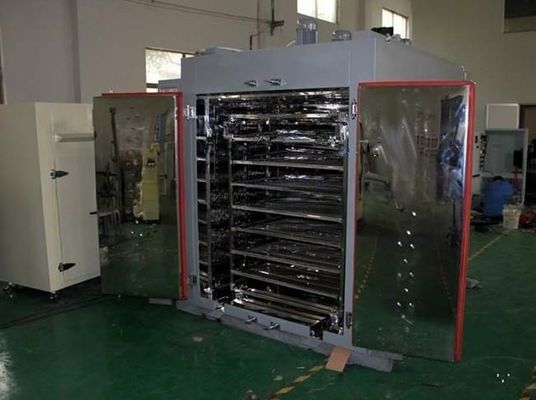

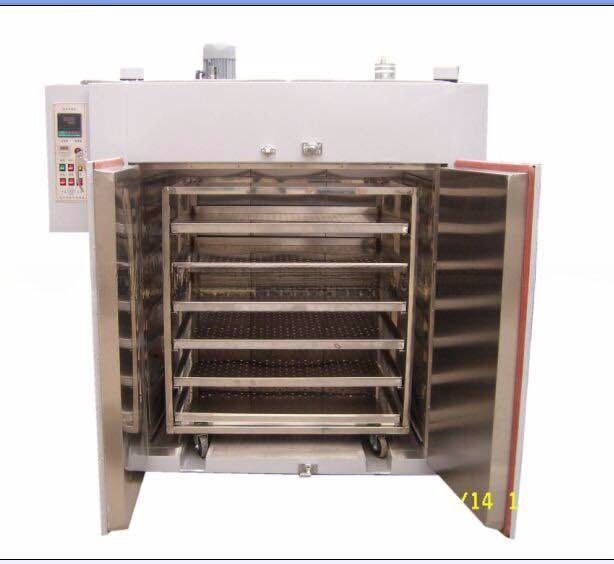

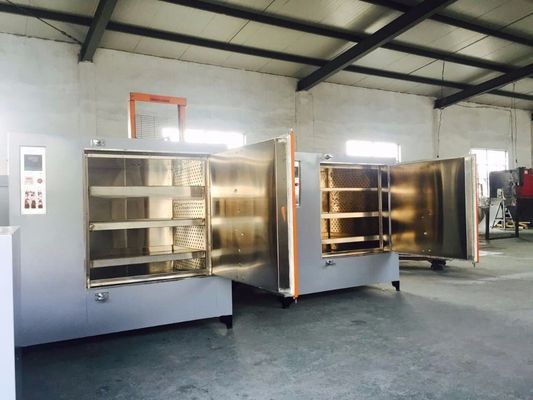

The Secondary Vulcanization Oven applies to secondary vulcanizing for silicone rubber, silicone mold curing, vulcanized silicone of food industry, curing molded medical silicone, silicone hose post curing, for baking, drying, finalizing formation.
| Model | Working Chamber size (DxWxH:mm) | Working Chamber Volume: Liter | Working temperature range (℃) | Temperature uniformity (℃) | Total Power (KW) | Voltage | Overall Size (DxWxH:mm) |
| XT-1 | 350x450x450 | 70L | RT~300 | ±2.5~3 | 2 | 220V | 550x970x900 |
| XT-2 | 450x550x550 | 136L | RT~300 | ±2.5~3 | 3 | 220V | 650x1070x1000 |
| XT-3 | 500x600x750 | 225L | RT~300 | ±2.5~3 | 4.5 | 380V | 700x1120x1200 |
| XT-4 | 800x800x1000 | 640L | RT~300 | ±2.5~3 | 9 | 380V | 1000x1320x1460 |
| XT-5 | 1000x1000x1000 | 1000L | RT~300 | ±2.5~3 | 12 | 380V | 1200x1520x1460 |
| XT-6 | 1000x1200x1200 | 1440L | RT~300 | ±2.5~3 | 15 | 380V | 1200x1790x1980 |
| XT-7 | 1000x1200x1500 | 1800L | RT~300 | ±2.5~3 | 18 | 380V | 1200x1790x2280 |
| XT-8 | 1200x1500x1500 | 2700L | RT~300 | ±2.5~3 | 21 | 380V | 1400x2090x2280 |
