Product Details:
|
| Type: | Oil Seal Spring Loader | Condition: | New |
|---|---|---|---|
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Warranty Of Core Components: | 1 Year | Core Components: | PLC, Bearing, Motor |
| Voltage: | 220V/380V | Dimension(L*W*H): | L2200xW1200xH1800mm |
| Warranty: | 1 Year | Key Selling Points: | Automatic And High Productivity |
| Power (kW): | 0.35 KW | Weight (KG): | 250 KG |
| Applicable Industries: | Manufacturing Plant | Showroom Location: | Turkey |
| After-sales Service Provided: | Field Maintenance And Repair Service | Power: | 350W |
| Weight: | 250 | Marketing Type: | Ordinary Product |
| Port: | Shanghai |

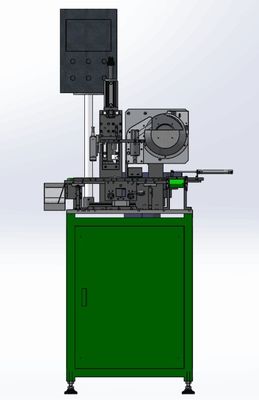

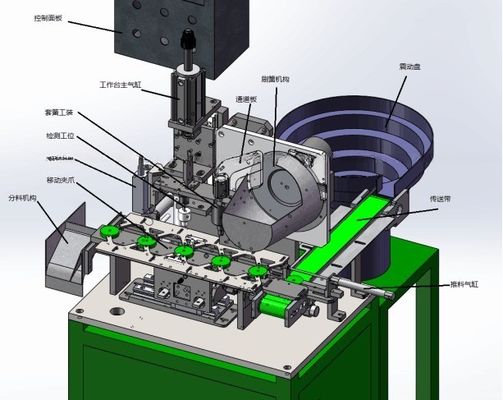

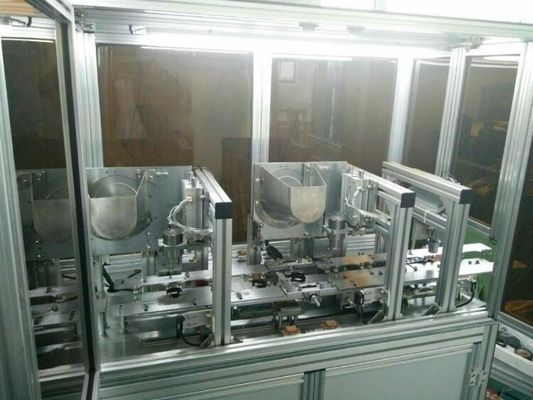

Automatic Spring Loading Machine for oil seal.
This machine is used for loading spring on the oil seal automatically, it can load spring on one side of the oil seal, it can also load springs on both sides of the oil seal. At the same time this machine has the function of quantitative filling of grease, and this machine has the function of detecting unqualified product ,if one oil seal, the spring is not loaded or not loaded properly,it will be detected and screened out.
Application scope for the oil seal:
outer diameter of oil seal: 12~50mm
thickness of oil seal:≤20mm
Production capacity: 14~16 PCS/min
Control system: PLC+ touch screen control
Operation status display mode: touch screen, display alarm/required parameter setting and monitoring.
Operation mode: touch screen preset and adjust operating parameters; mechanical knob, single action control button, with manual / automatic working mode to select debugging function.
Power supply: single phase,220V/50HZ (sepcial voltage can be customized.)
Pressusre of compressed air supply: 0.4~0.6 Mpa
Height of working table above ground: 800±50mm, the height of the base can be adjusted, and the anti-vibration foot with self-aligning screw can be adjusted within ±50 mm.
Power: 350W
Dimension: L2200xW1200xH1800mm
Weight:250 Kgs
