Product Details:
|
| Condition: | New | Video Outgoing-inspection: | Provided |
|---|---|---|---|
| Machinery Test Report: | Provided | Warranty Of Core Components: | 2 Years |
| Core Components: | PLC, Bearing, Motor | Machine Type: | Rubber Preformer |
| Voltage: | 380V/220V/415V/460V | Dimension(L*W*H): | L5000xW1100xH1700mm |
| Weight: | 4000kg | Warranty: | 1 Year |
| Power (kW): | 11 | Key Selling Points: | High-accuracy |
| Showroom Location: | Turkey | Applicable Industries: | Manufacturing Plant |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Color: | Blue |
| Total Power(W): | 19KW | Marketing Type: | Ordinary Product |
| After Warranty Service: | Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service | Local Service Location: | Turkey |
| Port: | Ningbo |

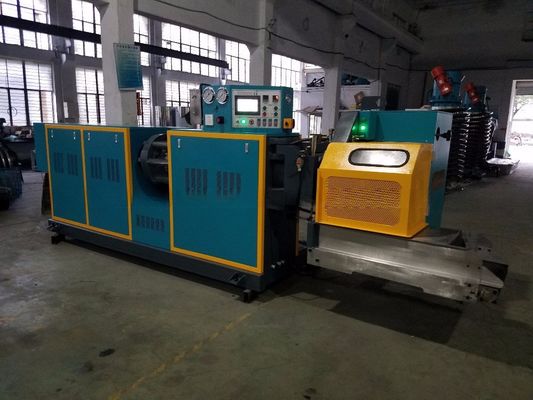

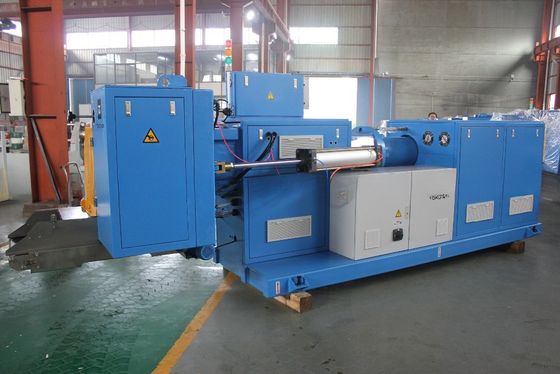

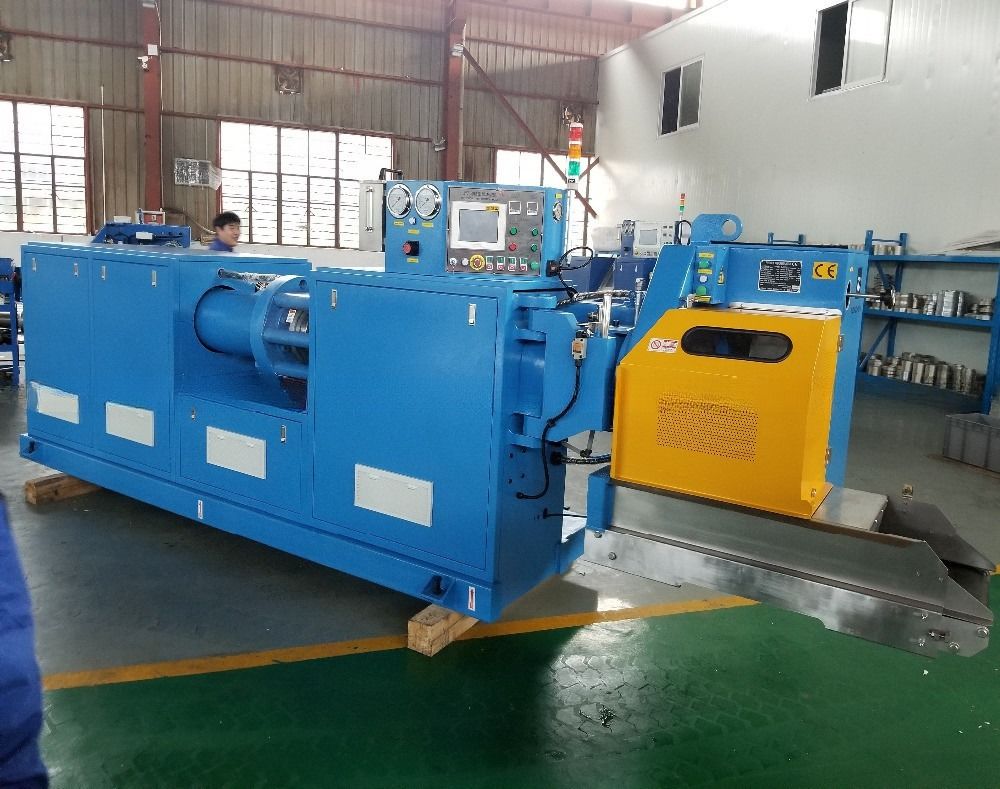

Rubber Blank Preforming Machine/ Rubber Precision Preformer/Rubber Preformer:
The Rubber preformer is specially designed to rubber blank preparation in high precision cut and high efficiency production.
Adopt PLC control and touch screen operation.Color display guide you to easily perform data entry, password protection.
It can store 1000 kinds of products data,which can be used any time.
Variable frequency motor control the cutter speed infinitely.
Electronic scale with closed feedback,to control weight of rubber blank.
Reliable security,the movements of head ,cutter and plunger piston are interlocking.
Failure will be shown by icon and text.
Vacuum system: before extruding and cutting, using vacuum system to remove the air and gas in barrel, head, inside the compound mixture, thereby enhancing the quality of products under the curing process.
Heating System: The water cycle heating mode, temperature control by a digital thermostat and display. Ensure nose, barrel temperature constant.
Single cylinder design ,barrel is lengthened,improving mechanical stability,easier to clean.
| Barrel ID(mm) | 250 |
| Total Power(kw) | 26 |
| Max.Cylinder hydraulic pressure (MPa) | 18 |
| Oil pump motor(kw) | 11 |
| Assistant oil pump motor (kw) | 5.5 |
| Cutting motor(kw) | 1.5 |
| Vacuum pump motor(kw) | 0.75 |
| Heater power(kw) | 8 |
| Tot water pump motor (kw) | 0.09 |
| Conveying belt motor(kw) | 0.18 |
| Max.barrel temperature(℃) | 95 |
| Max. Die Diameter(mm) | 190 |
| Rubber Blank weight (g) | 0.3--2000 |
| Cut Precision in weight(%) | ±1.0 |
| One batch capacity(L) | 60L |
| Blade speed (r/min) | 35-320 stepless speed adjustment |
| Dimension(LxWxH)m | 5x1.2x1.7 |
| Weight (T) | 5 |
When machines reach customer's factory, if cutomer require installation service, we will send engineer to come for installation and operation training of the machine,ensuring everything go smooth and custommer's satisfcation are our most important job and best long-term pursuit.
