Product Details:
|
| Type: | Rubber Cutting Machine | Condition: | New |
|---|---|---|---|
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Warranty Of Core Components: | 5 Years | Core Components: | PLC, Engine, Motor, Gear |
| Voltage: | 220V | Dimension(L*W*H): | 1020x600x1000mm |
| Warranty: | 1 Year | Key Selling Points: | Sustainable |
| Power (kW): | 0.37 KW | Weight (KG): | 210 KG |
| Applicable Industries: | Manufacturing Plant | Showroom Location: | Kazakhstan, None |
| Spindle Speed: | 0-3000R/Mim | Cutting Scope: | Diameter:5-200mm Adjustable |
| Tool Specification: | 3X3X60MM | Production Capacity: | About 25pcs/min |
| Vacuum Degree: | <=-0.035mpa | Spindle Precision: | Radial :<0.01mm,end Face:<0.02mm |
| Cutting Angle: | Oil Seal:20-70 Degree. Cup Seal:0-90 Degree | After Warranty Service: | Video Technical Support |
| Marketing Type: | New Product 2019 | Port: | Shanghai |
Application:
Trimming for Kinds of rubber skeletons, oil seal, packing leather, kinds of washer, round rubber parts.
Vacuum≤-0.035Mpa circular run out of main spindle≤0.01mmplane run out≤0.02mmSpeed of spindle:0-3000r/mincut degree:packing leather :0°~90°; oil seal:-10°~100°
cut range :10mm-200mm (adjustable)

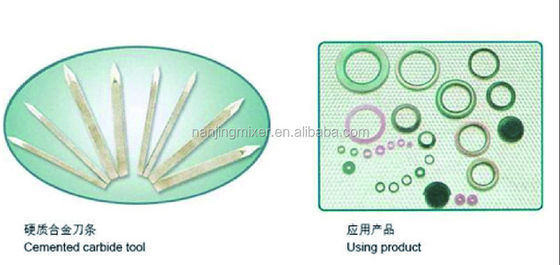

Blade specification(ThickxWidexLength):3x3x60mmProduction capacity≥20 pcs/minMotor:0.37 kwVoltage: 220vWeight: 280kgDimension:850mm×850mm×1800mm
Technical Specification:

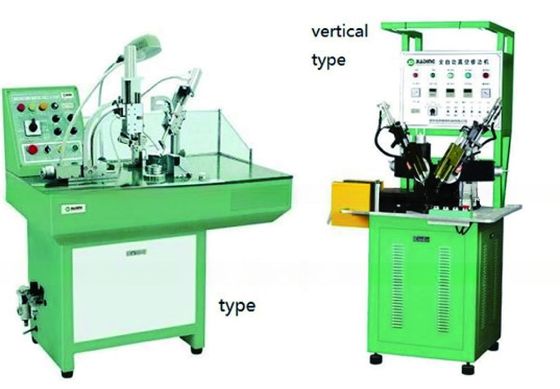

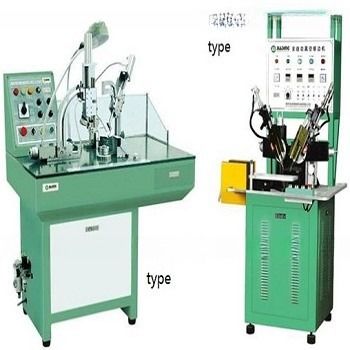

| Structure | Vertical | Horizontal |
| Vacuum Degree | ≤-0.035Mpa | ≤-0.035Mpa |
| Spindle Precision | Radial run-out≤0.01mm; End face run-out≤0.02mm | Radial run-out≤0.01mm; End face run-out≤0.02mm
|
| Shaft Speed | 0-3000r/min | 0-3000r/min |
| Cut Degree | Oil seal:20°~70°; Seal cup:0°~90° | Oil seal:20°~70°; Seal cup:0°~90° |
| Cut Range | φ5mm- φ200mm (adjustable) | φ5mm- φ200mm (adjustable) |
| Blade Size (ThickxWxLength) | 3x3x60mm
| 3x3x60mm
|
| Production Capacity | ≥20 pcs/min | ≥20 pcs/min |
| Motor | 0.37KW | 0.37KW |
| Voltage | 220V | 220V |
| Weight | 210 kg | 220 kg |
| Dimension(LxWxH:mm) | 1020x600x1000 | 850x850x1800 |
