Product Details:
|

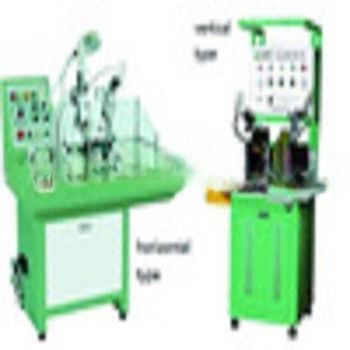

| Type: | Rubber Cutting Machine, Vertical Type And Horizontal Type | Condition: | New |
|---|---|---|---|
| Voltage: | 220V,380V, 415V ETC | Dimension(L*W*H): | 1020x600x1000mm |
| Warranty: | 1 Year | After-sales Service Provided: | Field Installation, Commissioning And Training, Engineers Available To Service Machinery Overseas |
| Power: | 0.37kw | Weight: | 210kg |
| Port: | Shanghai |
Application:

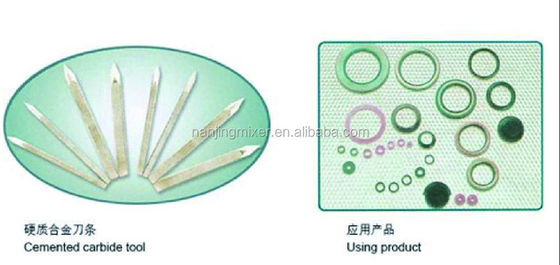

Trimming for Kinds of rubber skeletons, oil seal, packing leather, kinds of washer, round rubber parts.
Vacuum≤-0.035Mpa circular run out of main spindle≤0.01mmplane run out≤0.02mmSpeed of spindle:0-3000r/mincut degree:packing leather :0°~90°; oil seal:-10°~100°
cut range :10mm-200mm (adjustable)
Blade specification(ThickxWidexLength):3x3x60mmProduction capacity≥20 pcs/minMotor:0.37 kwVoltage: 220vWeight: 280kgDimension:850mm×850mm×1800mm
Technical Specification:
Structure | Vertical | Horizontal |
Vacuum Degree | ≤-0.035Mpa | ≤-0.035Mpa |
Spindle Precision | Radial run-out≤0.01mm; | Radial run-out≤0.01mm; |
Shaft Speed | 0-3000r/min | 0-3000r/min |
Cut Degree | Oil seal:20°~70°; | Oil seal:20°~70°; |
Cut Range | φ5mm- φ200mm (adjustable) | φ5mm- φ200mm (adjustable) |
Blade Size (ThickxWxLength) | 3x3x60mm | 3x3x60mm |
Production Capacity | ≥20 pcs/min | ≥20 pcs/min |
Motor | 0.37KW | 0.37KW |
Voltage | 220V | 220V |
Weight | 210 kg | 220 kg |
Dimension(LxWxH:mm) | 1020x600x1000 | 850x850x1800 |
