Product Details:
|
| Type: | Rubber Cutting Machine, PLC Type And Manual Type | Condition: | New |
|---|---|---|---|
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Warranty Of Core Components: | 5 Years | Core Components: | PLC, Engine, Motor, Gear |
| Voltage: | 220V | Dimension(L*W*H): | L1600xW800XH900 |
| Warranty: | 1 Year | Key Selling Points: | Sustainable |
| Power (kW): | 1.5 KW | Weight (KG): | 400 KG |
| Applicable Industries: | Manufacturing Plant | Showroom Location: | None |
| Power(W): | 1.5kw | Weight: | 400kg |
| After-sales Service Provided: | Field Installation, Commissioning And Training | After Warranty Service: | Video Technical Support |
| Marketing Type: | New Product 2020 | Port: | Shanghai |

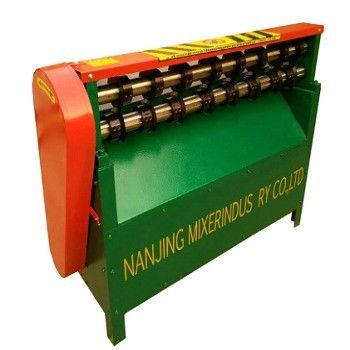

The rubber slitting machine is used to slit compound rubber sheet into uniform strip pieces.
Technical specification:
| Model | RSM-1000 | RSM-1500 | RSM-2000 |
| Max.Feeding width(mm) | 1000 | 1500 | 2000 |
| Max.Thickness(mm) | 30 | 30 | 30 |
| Min.Slitting width(mm) | 40 | 40 | 40 |
| Motor (KW) | 1.5 | 1.5 | 2.2 |
| Dimension (mm) | L1000xW750XH900 | L1600xW800XH900 | L2200xW880XH900 |
| Weight(Kg) | 300 | 400 | 500 |

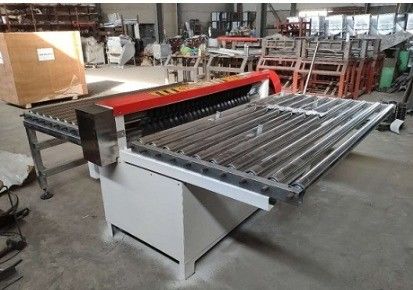

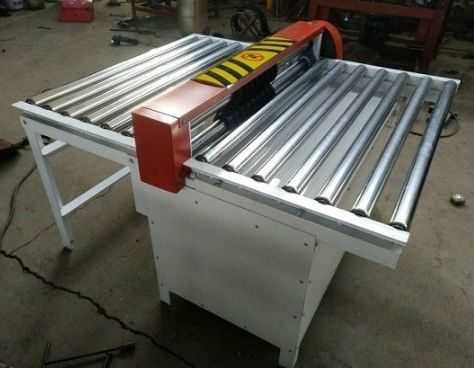

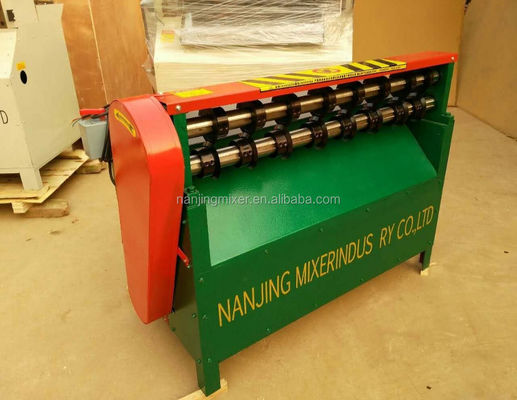

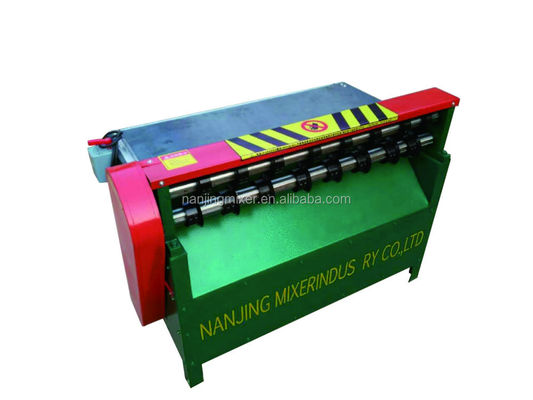

detailed images
