Product Details:
|
| Condition: | New | Warranty: | 1 Year |
|---|---|---|---|
| Weight (KG): | 800 | Video Outgoing-inspection: | Provided |
| Machinery Test Report: | Provided | Warranty Of Core Components: | 1 Year |
| Core Components: | PLC, Engine, Motor | Key Selling Points: | Famous Brand PLC |
| Applicable Industries: | Manufacturing Plant | Showroom Location: | None |
| Color: | Customer Request | After-sales Service Provided: | Video Technical Support |
| After Warranty Service: | Video Technical Support | Marketing Type: | Ordinary Product |
| Port: | Shanghai |

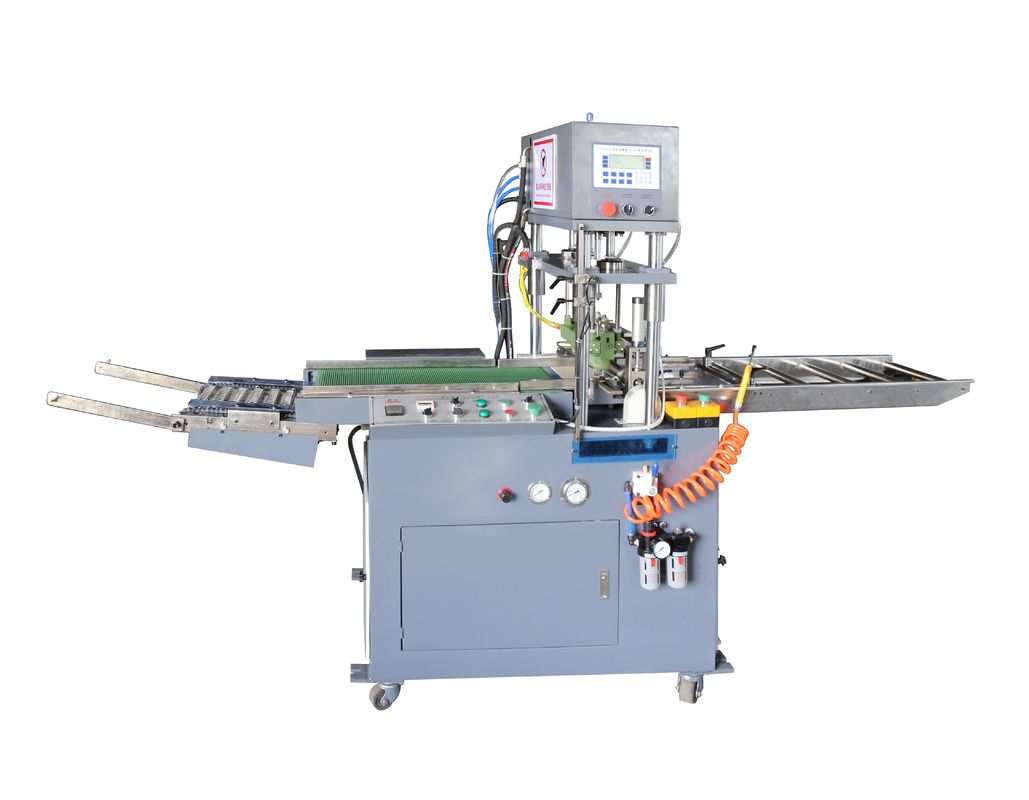

Automatic EVA Sole Die Cutting Machine
1.This machine is used for die cutting of the sole of EVA material, heel, half fork, and inner padding.
2.The machine adopts heating principle to reduce machine damage and reduce energy consumption, the cut effect
of material has smooth edges and beautiful appearance.
3.The sole cutting machine is fully automatic punching, saving labor, reducing labor intensity and high efficiency,the
output is several times of the traditional cutting machine.
4.It adopts advanced computer control system, hydraulic& pneumatic and other control components, fully digital
control system, easy to set up. With high cutting precision and simple operation,it is a favorite option for the EVA
sole plants to upgrade their production.
5.This machine is the latest generation, the cutting efficiency is more than 30% higher than the previous generation.
Automatic EVA Sole Die Cutting Machine
| Model Number | MCY-229 |
| Motor Power | 2.2 KW |
| Heating Power | 2.4 KW |
| Max Punching Force | 10T |
| Cutting Thickness | 5-50mm |
| Max. Cutting stroke(sole length) | 345mm |
| Pressure Range | 0-6 Mpa (hydraulic pressure); 0.3-0.6 Mpa (penumaticpressure). |
| Capacity | Aroud 20000 pairs/8hours |
| Weight | 800kg |
| Machine Size | L2900xW800xH1700mm |
