Product Details:
|
| Condition: | New | Video Outgoing-inspection: | Provided |
|---|---|---|---|
| Machinery Test Report: | Provided | Warranty Of Core Components: | 2 Years |
| Core Components: | PLC, Engine, Motor | Machine Type: | Oil Seal Machine |
| Voltage: | 220V/380V/460V | Dimension(L*W*H): | 1400x800x1330mm |
| Weight: | 450 | Warranty: | 1 Year |
| Power (kW): | 2.2 | Key Selling Points: | High Productivity |
| Showroom Location: | Turkey, India | Applicable Industries: | Manufacturing Plant, Food & Beverage Shops |
| Marketing Type: | Ordinary Product | Port: | Shanghai |

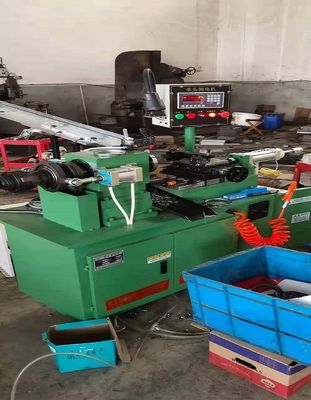

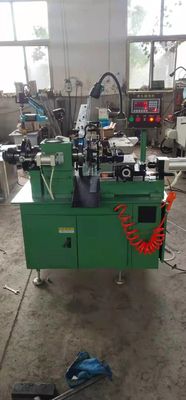

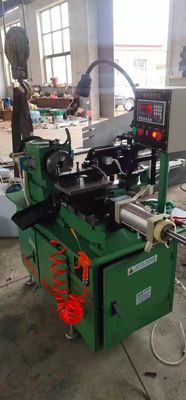

Auto Oil Seal Metal Case Trimming & Chamfering Machine:
It is Suitable for Trimming & chamfering on metal cases of oil seals.
- Automatic Feeding of Metal Case on a Die for Trimming & Chamfering. High Efficiency & precise processing.
-Loading the Metal Cases manually in line in the conveyor→ Metal Cases are delivered forward by the Conveyor → Robot Grip & Feed Metal Case on a Die → Automatic Trimming & Chamfering→Metal Case is ejected.
Model: D50-130
Motor 2.2KW
Main shaft speed: 0~1600 RPM, adjustable with inverter for speed control
Power system: Pneumatic
Control system: PLC
Processing range: diameter 50-130mm, height 5-30mm
Scope of application: trimming&chamfering on metal cases of oil seals
Processing speed: 10~20 PCS/ min
Dimension: L1.4*W0.80*H1.33 m
Weight: 450KG
