Product Details:
|
| Condition: | New | Video Outgoing-inspection: | Provided |
|---|---|---|---|
| Machinery Test Report: | Provided | Warranty Of Core Components: | 2 Years |
| Core Components: | PLC, Engine, Motor | Machine Type: | Oil Seal Machine |
| Voltage: | 220V/380V/460V | Dimension(L*W*H): | 1000x750x1750mm |
| Weight: | 320Kg | Warranty: | 1 Year |
| Power (kW): | 1.5 KW | Key Selling Points: | Automatic |
| Showroom Location: | Turkey | Applicable Industries: | Manufacturing Plant |
| Marketing Type: | Ordinary Product | After-sales Service Provided: | Field Installation, Commissioning And Training, Field Maintenance And Repair Service, Online Support, Video Technical Support |
| After Warranty Service: | Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service | Local Service Location: | Turkey |
| Port: | Shanghai |

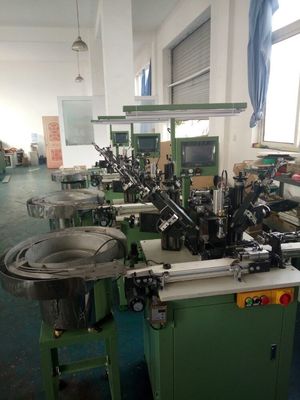

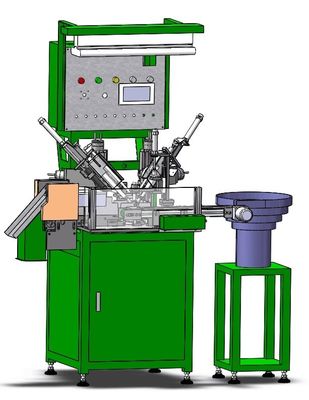

1.The Automatic Oil Seal Trimming Machine is specially designed for the fine trimming of rubber oil seal. The machine is equipped with a vibratory conveyor for auto feed, and with a chuck (or vacuum suction cup) to automatically clamp (or suck tight) the oil seal, and then the blades automatically start trimming the oil seal. One worker can operate 5~6 machines simultaneously to cut down the manufacturing cost greatly.
2.The machine is with automatic/semi-automatic/manual operation mode for options, and also has product accumulation function. Two blades can work independently at the same time or one after the other.
3. The workpiece processed by this auto oil seal trimming machine has the advantages of fine appearance, precise size and extremely high concentricity.
The control part adopts programmable controller PLC control, which is stable, efficient, low failure rate, high reliability and convenient maintenance.
The output adopts original imported MOS transistor, circuit insulation, optocoupler isolation, short circuit protection, ensuring reliable operation and long-life service.
1. Control system: PLC, Air Pressure System and Man-Machine Interface Touch Control System.
2. Trimming range: O.D. φ10~φ40mm, φ30mm~φ60mm, depend on vibratory conveyor specification
3.Knife set: Two Knife sets
4. Adjustable cutting angle: 0-90 degrees
5. Working air pressure: 0.5-1.0 Mpa
6.Blade size: 2×3×100mm (high-speed steel or tungsten carbide)
7. Trimming speed: 15-20 pcs/min
8. Total power: 1.5KW
10. Dimensions: 1000×750×1750mm
11. Net weight: 320Kg
