Product Details:
|
| Condition: | New | Video Outgoing-inspection: | Provided |
|---|---|---|---|
| Machinery Test Report: | Provided | Warranty Of Core Components: | 2 Years |
| Core Components: | PLC, Engine, Motor, Gear | Machine Type: | Vibcool Conveyor Belt |
| Voltage: | 380v | Dimension(L*W*H): | 1.5x2.2x2.7m |
| Weight: | 2000 | Warranty: | 1 Year |
| Key Selling Points: | Famous Brand PLC | Showroom Location: | Turkey |
| Applicable Industries: | Manufacturing Plant | Power(W): | 0.75*2 |
| After-sales Service Provided: | Field Installation, Commissioning And Training | After Warranty Service: | Video Technical Support |
| Marketing Type: | New Product 2020 | Port: | Ningbo Or Shanghai |

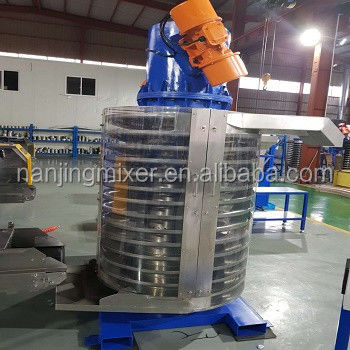

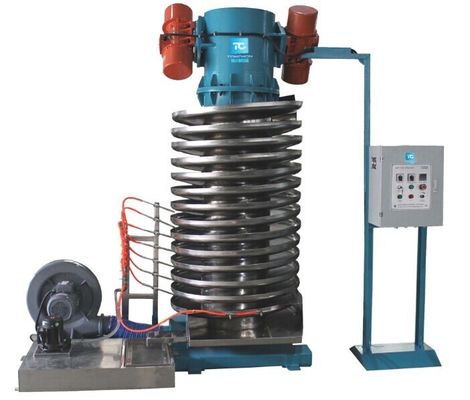

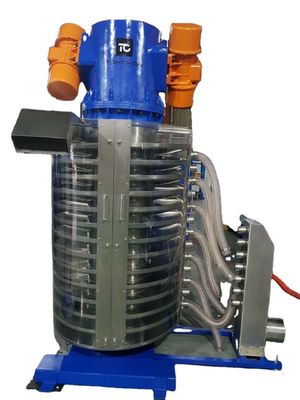

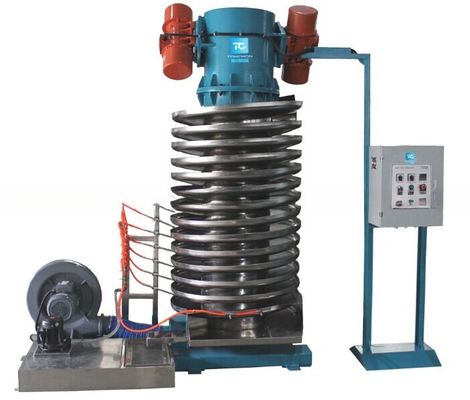

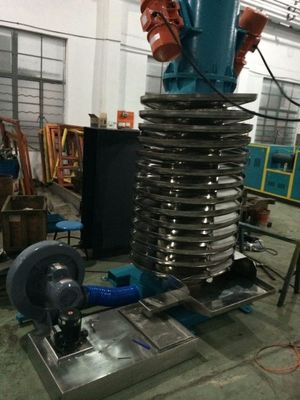

Vibrating cooler/ cooling conveyer is a space-saving type cooling conveyor specifically developed for the effective cooling, separation and drying of hot rubber preformed by a preformer/extruder.
| Items | Unit | LSX1000/1150 |
| Groove diameter | mm | 950/1150 |
| Groove width | mm | 330 |
| Groove height | mm | 1700/1900 |
| Max. distance travel | mm | 7000/9000 |
| Helical pitch | mm | 120/130 |
| Feeding width | mm | 700 |
| Height of inlet | mm | 320 |
| Conveying speed | m/min | 6~8 |
| Motor power | KW | 0.75*2 |
| External Dimension (L×W×H) | m | 1.5×2.2×2.7 |
| Weight | T | 1.3/2 |
