Product Details:
|
| Condition: | New | Video Outgoing-inspection: | Provided |
|---|---|---|---|
| Machinery Test Report: | Provided | Warranty Of Core Components: | 1 Year |
| Core Components: | PLC, Bearing, Motor, Pump | Machine Type: | Rubber Preformer Machine |
| Voltage: | 220V/380V/460V | Dimension(L*W*H): | 5200x1400x1850 |
| Weight: | 5500KGS | Warranty: | 1 Year |
| Key Selling Points: | Long Service Life | Showroom Location: | Turkey, Thailand |
| Applicable Industries: | Manufacturing Plant | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| Marketing Type: | Ordinary Product | After Warranty Service: | Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service |
| Local Service Location: | Turkey, Thailand | Port: | Ningbo |

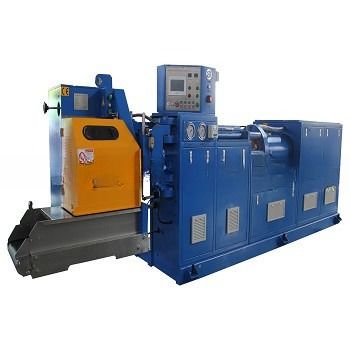

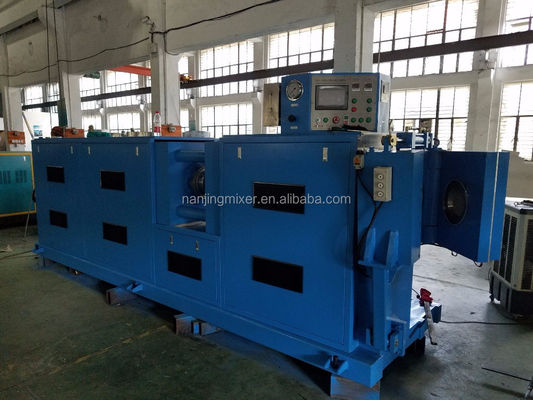

High-pressure precision preforming machine is a high-efficiency, high-precision rubber blank production equipment, the maximum extrusion pressure up is to 40Mpa,wide applicability for a variety of rubber with high hardness, poor fluidity, such as fluorine rubber. It can extrude all kinds of ring shaped , rectangular, strip shaped and profile rubber blanks. It combines the functions of vacuum,screening ( remove impurities inside the rubber compound first and then cutting), extruding, cutting, weighing. Adopting humanized design, simple operation, and the hydraulic control machine,easy to open and close . Safety comforms to CE standard.
| Model | JYZ-H-200L |
| barrel diameter | 200mm |
| total power consumption | 26 KW |
| max.pressure for oil cylinder | 21 Mpa |
| Max.extrusion pressure | 40 Mpa |
| oil pump power | 11 KW |
| motor power for cutter | 1.5 KW |
| vacuum pump power | 0.75 KW |
| hot water pump motor power | 0.09 KW |
| heater power | 5 KW |
| conveyor motor | 0.18 KW |
| hydraulic power for door opening | 1.1 KW |
| asistant pump power | 5.5 KW |
| max.temperature for barrel | 95 ℃ |
| max.die diameter | 127 mm |
| weight range of rubber blank | 0.3-300 g |
| cutting precision | ±1 % |
| working capacity | 35L |
| cutter speed | 35-400RPM,variable speed control |
| Dimension | L5200xW1400xH1850 mm |
| Weight | 5.5 ton |
