Product Details:
|
| Condition: | New | Voltage: | 110V-480V 50/60HZ |
|---|---|---|---|
| Dimension(L*W*H): | 6500x1450x1850mm | Weight: | 7500 KGS |
| Warranty: | 1 Year | After-sales Service Provided: | Field Maintenance And Repair Service, Engineers Available To Service Machinery Overseas |
| Power: | 36KW | Port: | Ningbo |

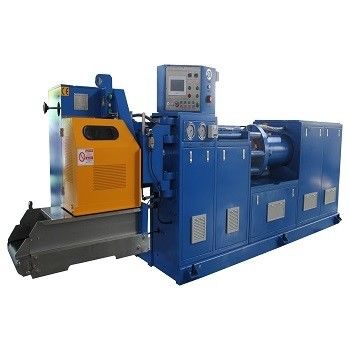

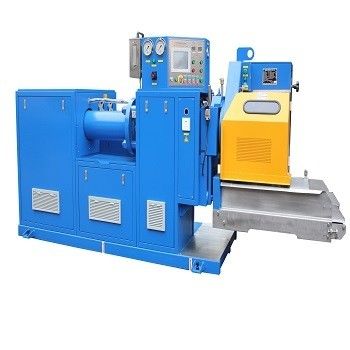

High Pressure type Rubber Preformer/High Pressure Rubber Preforming Machine /High Pressure type Barwell Machine:
This prefomer is High Pressure type compared with the standard Preformer machine,it is a high efficiency machine to produce high precision rubber blanks.The max.extrusion pressure for the High-Pressure Precison Preformer is up to 5500 PSI,with wide application,especially for kinds of rubber with high hardness and poor fluidity,like viton,achieving rubber filtering and cutting simultaneously.Filtering level can reach 300 mesh,can cut different shapes of rubber blanks by installing relevant dies. It combines the functions of vacuum system,filtering,extrusion,cut,weighing,calculation.The machine is user-friendly design,easy operation and maintenance.
<![if !supportMisalignedColumns]><![endif]>
Model | JYZ250-H | |
Barrel ID(mm) | 250 | |
Total power(kw) | 36 | |
Max.extrusion pressure(PSI) | 5500 (~37.9Mpa) | |
Oil pump power(kw) | 15 | |
Motor power for head open/close (kw) | 2.2 | |
assistant oil pump power(kw) | 5.5 | |
Vacuum pump power(kw) | 2 | |
Hot water pump power(kw) | 0.09 | |
Heater power (kw) | 8 | |
Max.production capacity/h(kg) | 800 | |
Max.head temperature(℃) | 95 |
Max.barrel temperature(℃) | 95 |
Rubber blanks weight(g) | 0.3--2000 |
Filter precision (mesh) | 20-300 |
One batch capacity (Liter) | 75 |
Rubber blank precision(%) | ±1 |
Max.die diameter(mm) | 190 |
Blade speed(r/min) | 35-400 variable speed control |
Dimension(L*W*H:m) | 6.5*1.45*1.85 |
Weight(Ton) | 7.5 |
