Product Details:
|
| Condition: | New | Voltage: | 110V-480V 50/60HZ |
|---|---|---|---|
| Dimension(L*W*H): | 4400x1700x1700 | Weight: | 4500KG-20500KG |
| Warranty: | 1 Year | After-sales Service Provided: | Field Maintenance And Repair Service, Engineers Available To Service Machinery Overseas |
| Color: | Custom Made | Power: | 16-26KW |
| Port: | Ningbo |

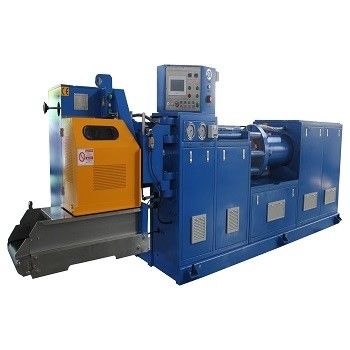

Gear Pump Rubber Preformer/Gear Pump Barwell/Continuous Gear Pump Preforming Machine/Cold-Feed Rubber Preformer
Items | Unit | TC-180 | TC-320 | TC-550 |
Max capacity | kg/h | 180 | 320 | 550 |
Max Pump RPM | rpm | 50 | 50 | 50 |
Screw Diameter | mm | 75 | 90 | 120 |
Screw L/D Ratio | L/D | 8:1 | 10:1 | 12:1 |
Heating/cooling zones |
| 4 | 5 | 6 |
Max operating pressure | Mpa | 35 | 40 | 40 |
Max Die size | mm | 70 | 125 | 190 |
Cutter Speeds (Variable) | r/min | 50-450 | 50-450 | 50-450 |
Blank weight accuracy | % | ±1 | ±1 | ±1 |
Shoe Sole Head available |
| NO | Yes | Yes |
Database |
| 2000 | 2000 | 2000 |
Rubber Blank Weight Range | g | 0.3-100 | 0.3-200 | 0.3-1000 |
Weight | T | 3 | 5.5 | 7.5 |
Dimension(LXWXH) | m | 4X2X1.9 | 5X2.1X2.0 | 6.2X2.5X2.2 |
