Product Details:
|
| Condition: | New | Video Outgoing-inspection: | Provided |
|---|---|---|---|
| Machinery Test Report: | Provided | Warranty Of Core Components: | 1 Year |
| Core Components: | PLC, Engine, Bearing, Motor, Valve, Hydraulic System | Machine Type: | Preforming Machine |
| Voltage: | 380,220V,415V,440V,480V | Dimension(L*W*H): | 4x1.1x1.7 M |
| Weight: | 2800 | Warranty: | 1 Year |
| Power (kW): | 16 | Key Selling Points: | High Cutting Precision |
| Showroom Location: | Turkey, Thailand | Applicable Industries: | Manufacturing Plant |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Marketing Type: | Ordinary Product |
| Port: | Ningbo Or Shanghai |

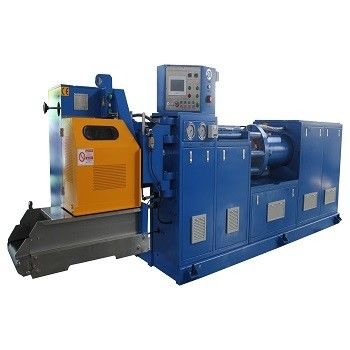

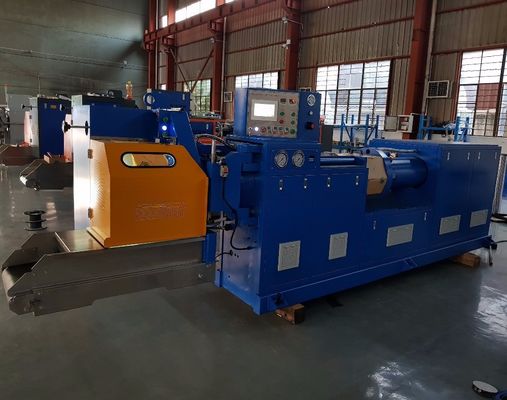

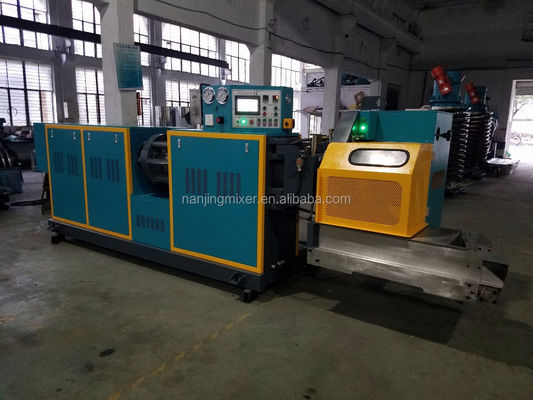

JYZ200 Rubber Preformer:
| Model | JYZ150 | JYZ200 | JYZ250 |
| Barrel diameter | 150 mm | 200 mm | 250 mm |
| Total power | 16 kw | 16 kw | 19kw |
| Max.oil cylinder pressure | 36.8 Mpa | 20.7 Mpa | 17 Mpa |
| Max.barrel temperature | 95℃ | 95℃ | 95℃ |
| Max. die diameter | 80 mm | 125 mm | 190 mm |
| Rubber bland weight range | 0.3~100 g | 0.3~200g | 0.3~2000g |
| Rubber blank weight precision(percent) | ±1.0 | ±1.0 | ±1.0 |
| Feed capacity per batch | 8~10 kg | 20~25 kg | 60~70 kg |
| Blade rotation speed | 35~300 R/M | 35~300 r/min | 24~300 r/min |
| Dimension(L×W×H) | 4×1.1×1.7 m | 4×1.1×1.7 m | 5×1.1×1.7 m |
| Weight | 2.8 T | 3 T | 4T |
1. Reply your inquiry in 24 working hours.
2. Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staff.
3. Professional factory: We are manufacturer, specializing in producing all kinds of machinery for more than 11 years, competitive with good quantity.
Nanjing Mixer Industrial Co., Ltd (the same company as Nanjing Mixer Rubber&Plastic Machinery Co., Ltd) We are the sister company with Taixing Reshine Rubber&Plastic Machinery Co., Ltd ,Ningbo Dechuan Machinery Co., Ltd and Wuxi Zhenxing Machine Co.,having more than 10 years of experience in the field of rubber&plastic machineries, owning 5 manufacturing plants, mostly are located within the scope of 300 KM around Shanghai, having dozens of experienced engineers and more than 100 skilled workers, as well as a considerable number of precise, digital-control, advanced processing machine tools. All ensure every part and details of our machines with good performance and qualified running test before delivery to our customers on time.
