Product Details:
|
| Condition: | New | Machine Type: | Plate Vulcanizing Press |
|---|---|---|---|
| Voltage: | 220V/380V/415V/440V | Warranty: | 1 Year |
| Key Selling Points: | Long Service Life | Showroom Location: | Turkey |
| Applicable Industries: | Manufacturing Plant | After-sales Service Provided: | Field Installation, Commissioning And Training, Field Maintenance And Repair Service, Online Support, Video Technical Support, Engineers Available To Service Machinery Overseas |
| After Warranty Service: | Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service | Local Service Location: | Turkey |
| Port: | Shanghai |

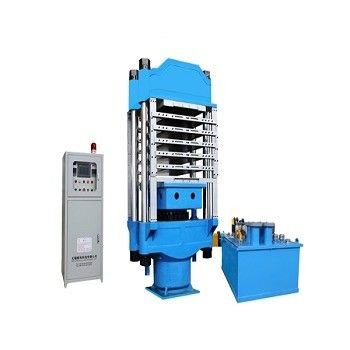

Foam Vulcanizing press for EVA/PE interlocking mat and puzzle mat
Usage: suitable for making EVA/PE puzzle, interlocking mat, middle size color sheets.
Advantage: 1. Productivity: multi layer design, output increase 15%-35%, finished product ratio increase 10% 2. Auto material feeding and unloading device are available for user’s option.
3. Optional device for choose: positioning mechanism, open mould/close mould balance mechanism and open mould silence device.
| Item | Model | Total pressure | Cylinder diameter | Platen size | Daylight | Layers | Column Span | Motor power |
| Ton | mm | mm | mm | mm | kw | |||
| 1 | MXF-250T | 250 | 380 | 800*1000 | 140 | 4 | 1000 | 7.5 |
| 2 | MXF-300T | 300 | 450 | 900*1100 | 150 | 4 | 1000 | 7.5 |
| 3 | MXF-500T | 500 | 560 | 1000*1200 | 150 | 4 | 1300 | 11 |
| 4 | MXF-650T | 650 | 650 | 1100*1350 | 150 | 6 | 1400 | 11 |
| 5 | MXF-850T | 850 | 762 | 1200*1500 | 150 | 6 | 1600 | 15 |
| 6 | MXF-1000T-A | 1000 | 813 | 1350*1700 | 150 | 6 | 1800 | 22 |
| 7 | MXF-1000T-B | 1000 | 813 | 1200*1500 | 150 | 6 | 1500 | 22 |
| 8 | MXF-1100T | 1100 | 838 | 1350*1700 | 150 | 6 | 1800 | 22 |
| 9 | MXF-1350T-A | 1350 | 915 | 1350*1800 | 180 | 6 | 1800 | 22 |
| 10 | MXF-1350T-B | 1350 | 915 | 1350*1500 | 150 | 6 | 1500 | 22 |
| 11 | MXF-1650T-A | 1650 | 1016 | 1400*2200 | 180 | 6 | 1800 | 30 |
| 12 | MXF-1650T-B | 1650 | 1016 | 1500*2400 | 200 | 9 | 2200 | 30 |
