Product Details:
|
| Type: | Rubber Cutting Machine | Condition: | New |
|---|---|---|---|
| Voltage: | 220V | Dimension(L*W*H): | 1300x640x1000 Mm |
| Warranty: | 1 Year | Key Selling Points: | Long Service Life |
| Power (kW): | 3 KW | Weight (KG): | 360 KG |
| Applicable Industries: | Manufacturing Plant | Showroom Location: | Turkey |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | After Warranty Service: | Video Technical Support, Online Support, Field Maintenance And Repair Service |
| Local Service Location: | Turkey | Port: | Shanghai |

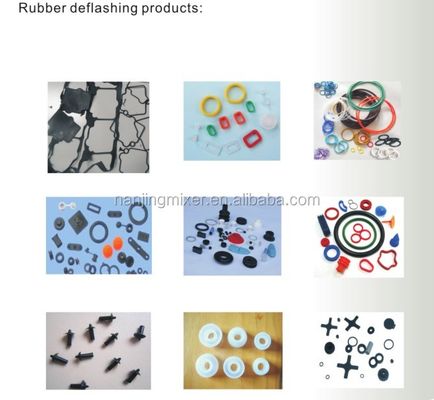

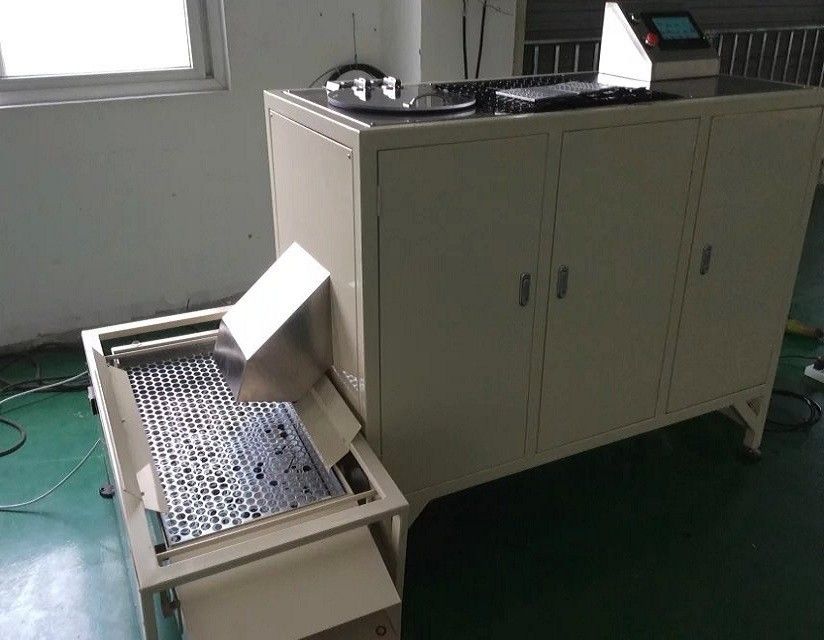

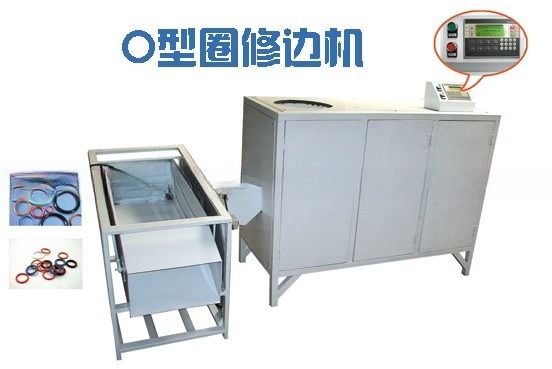

By using the theory of aerodynamic and centrifugal force, this machine is developed to make the rubber burrs and rubber products separated, applicable to all silicone, rubber, nitrile rubber, fluorine rubber seals and other kinds of molded rubber parts, such as O-Ring, rubber plug,gasket,rubber particles,Y-ring,solid miscellaneous special shaped rubber parts (rubber OD:3-80mm),a whole molded rubber product can be processed directly to remove its burr.
1.PLC programming control, touch-screen human-machine digital operation, store all kinds of production process, parameters of each product.
2.Precisely controlled demolition speed, operating performance is simple, intelligent, working sound is low, greatly reduces the operator fatigue. The machine has feeding position and working station, no need to stop machine every time when feeding, achieving continuous flow operation.
3.Power consumption is only around 3 KW per hour,more importantly,this machine can remarkably reduce labor force, saving workforce cost,greatly improve production efficiency, the production capacity of one this machine is equivalent 30 times of workers’ manual production.
Besides this machine won’t do deformation,damage,dirt to the processed rubber.
4.No need to change any mold or any parts for the machine.
Main Technical specification:
| Motor | 3KW |
| Capacity | 10-22 molds /min |
| Weight | 360 kg |
| Dimension | 1300x640x1000 mm |
