Product Details:
|
| Condition: | New | Video Outgoing-inspection: | Provided |
|---|---|---|---|
| Machinery Test Report: | Provided | Warranty Of Core Components: | 1 Year |
| Core Components: | PLC, Bearing, Motor | Machine Type: | Rubber Parts Trimming Machine |
| Voltage: | 380V/220V | Dimension(L*W*H): | L1450*W700*H1000mm |
| Weight: | 400 KG | Warranty: | 1 Year |
| Power (kW): | 5 | Key Selling Points: | Automatic |
| Showroom Location: | Turkey | Applicable Industries: | Manufacturing Plant |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas, Field Installation, Commissioning And Training, Field Maintenance And Repair Service, Online Support, Video Technical Support | Marketing Type: | Ordinary Product |
| After Warranty Service: | Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service | Local Service Location: | Turkey |
| Port: | Shanghai |
This is Rubber Deflashing Machine, rubber parts trimming machine:

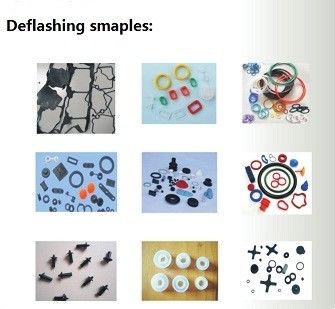

by using the theory of aerodynamic and centrifugal force, this machine is developed to make the rubber burrs and rubber products separated, applicable to all silicone, rubber, nitrile rubber, fluorine rubber seals and other kinds of molded rubber parts, such as O-Ring, rubber plug, gasket, rubber particles,Y-ring,solid miscellaneous special shaped rubber parts ,a whole molded rubber product can be processed directly to remove its burr.
1. PLC programming control, touch-screen human-machine digital operation, store all kinds of production process, parameters of each product.
2. Precisely controlled demolition speed, operating performance is simple, intelligent, working sound is low, greatly reduces the operator fatigue. The machine has feeding position and working station, no need to stop machines every time when feeding, achieving continuous flow operation.
3. Power consumption is only around 3 KW per hour, more importantly, this machine can remarkably reduce labor force, saving workforce cost, greatly improve production efficiency, the production capacity of one this machine is equivalent at least 50 times of workers’ manual production.
Besides this machine won’t do deformation, damage, dirt to the processed rubber.
4. No need to change any mold or any parts for the machine.

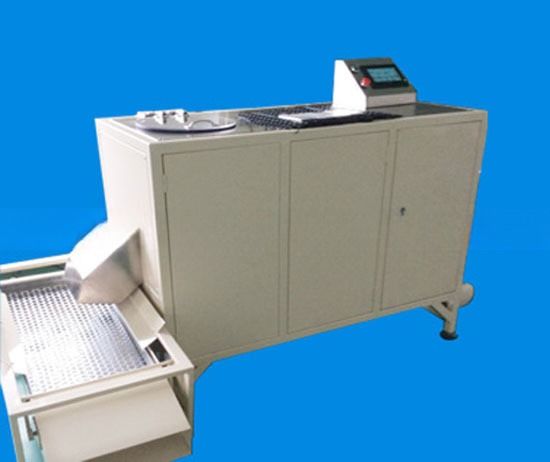

Spin-trim type Rubber Deflashing machine:
| Model | NMI-406 |
| Dimension | L1450*W700*H1000mm |
| Spin-chamber capacity | 22 Liter |
| Diameter of spin-chamber | 406 mm |
| Max.spinning speed | 10000 RPM (adjustable) |
| Operation time/batch | Depends on different rubber parts, Cycle time is adjustable |
| Motor | 5KW |
| Variable-frequency Drive | 7.5KW |
| Electronic control system | PLC+Touch screen control, automatic storage operating system. |
| Water spraying function | Automobile-grade automatic water spraying function. |
| Fresh air system: | Compressed air-cooling device |
| Transmission system | -Aviation aluminum standard V-ribbed pulley. -Automobile standard American gates conveyor belts. - High-speed bearings imported from Germany.
|
| Working Noise | insulated for sound reduction |
| Dimension | L1450*W700*H1000mm |
| Weight | 400 KGS |

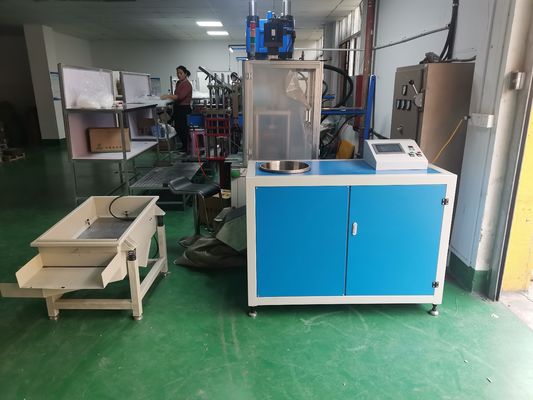

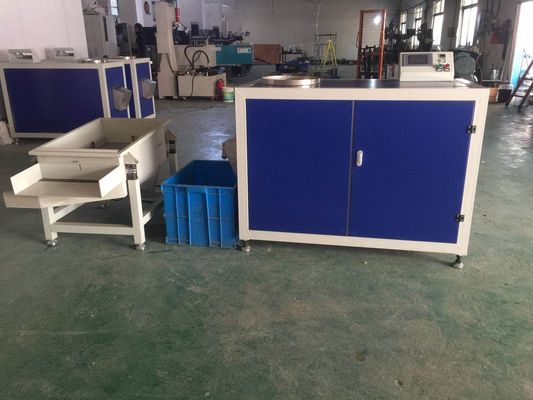

Vibration screen separator:
| Application | Separation of burrs (unwanted flash) from the good rubber parts |
| Explosion-proof professional vibration motor | 0.18 KW |
| Spring cushion | Special spring rubber combined buffer device |
| Replaceable mesh screens | 10 PCS |
| Dimension | L1250*W600*H600mm |
| Weight | 100 KGS |
