Product Details:
|
| Condition: | New | Video Outgoing-inspection: | Provided |
|---|---|---|---|
| Machinery Test Report: | Provided | Marketing Type: | Ordinary Product |
| Warranty Of Core Components: | 1 Year | Core Components: | PLC, Bearing, Motor |
| Material / Metal Processed: | ALLOY, Aluminum, Aluminium Alloy, Stainless Steel, Carbon Steel | Automation: | Semi-automatic |
| Weight (KG): | 450 KG | Motor Power (kW): | 1.5 KW |
| Warranty: | 1 Year | Key Selling Points: | High Productivity |
| Applicable Industries: | Manufacturing Plant, Oil Seal Plant, Oil Seal Shell Plant | Showroom Location: | Turkey, India |
| Port: | Shanghai |

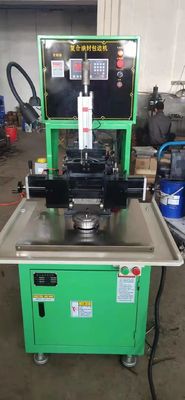

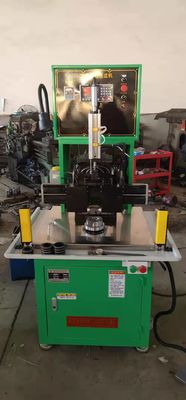

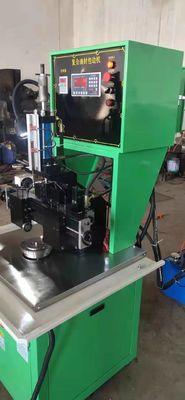

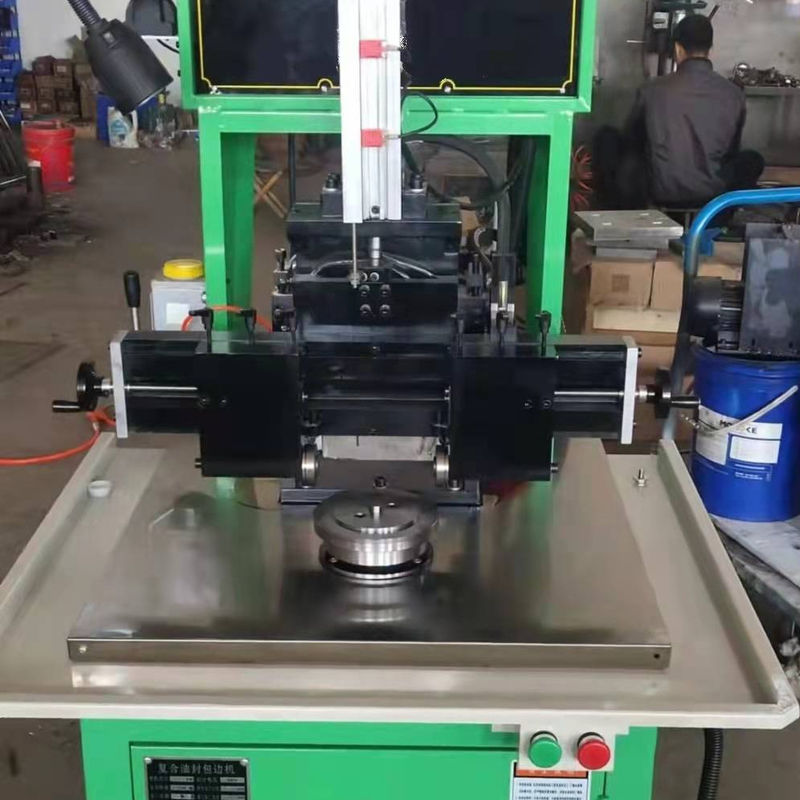

Oil Seal Metal Case Flanging Machine
1.This machine is suitable for processing inner and outer flanges of combined oil seal or inner and outer flanges of single oil seal .
2.Suitable for processing oil seal diameter range: φ40~φ300mm,height≤35mm.
3.Technical data:
Power supply:380V/50HZ
Motor power: 1.5KW-6
Inverter power:2.2KW
Main shaft speed: 0~600 RPM
Pump station: 1.5KW-VP20-40L
Oil cylinder:φ50mm*stroke 125mm-75mm adjustable
Control system:single board microcomputer control system
Dimension:L1000xW900xH1700mm
Weight:450 kgs
