Product Details:
|
| Condition: | New | Video Outgoing-inspection: | Provided |
|---|---|---|---|
| Machinery Test Report: | Provided | Marketing Type: | Ordinary Product |
| Warranty Of Core Components: | 1 Year | Core Components: | PLC, Bearing, Motor |
| Material / Metal Processed: | ALLOY, Aluminum, Aluminium Alloy, Stainless Steel, Carbon Steel | Automation: | Semi-automatic |
| Weight (KG): | 450 KG | Motor Power (kW): | 1.5 KW |
| Warranty: | 1 Year | Key Selling Points: | High Productivity |
| Applicable Industries: | Manufacturing Plant, Oil Seal Plant, Oil Seal Shell Plant | Showroom Location: | Turkey, India |
| Port: | Shanghai |

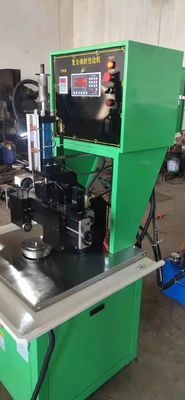

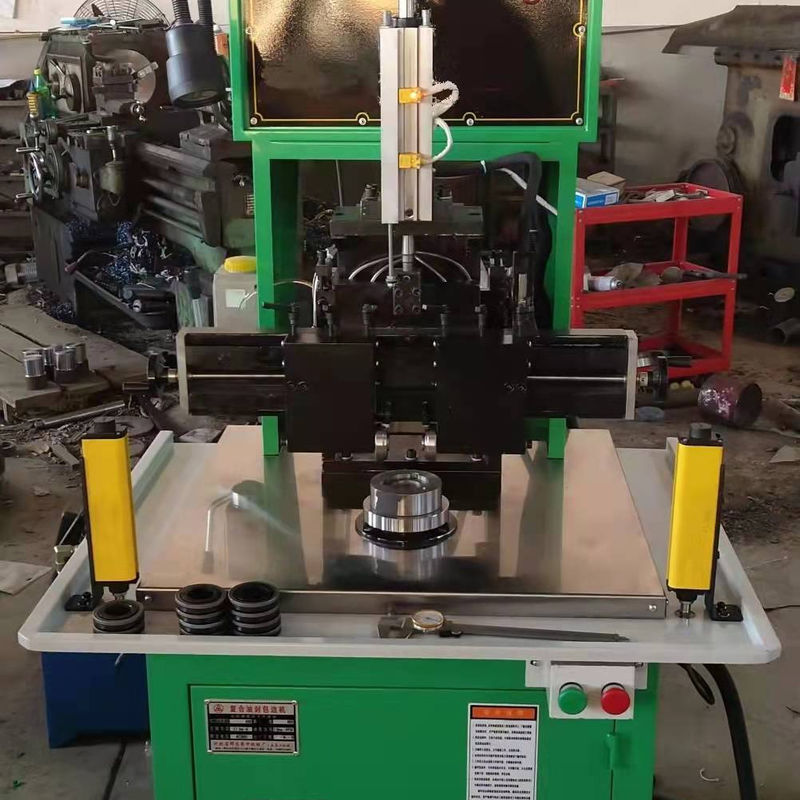

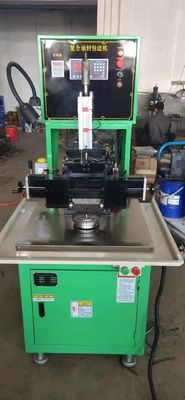

Oil Seal Metal Shell Flanging Machine
1.This oil seal metal shell flanging machine is suitable for processing inner and outer flanges of combined oil seal or inner and outer flanges of single oil seal .
2.Suitable for processing oil seal diameter range: φ40~φ300mm,height≤35mm.
3.Technical data:
Power supply:380V/50HZ
Motor power: 1.5KW-6
Inverter power:2.2KW
Main shaft speed: 0~600 RPM
Pump station: 1.5KW-VP20-40L
Oil cylinder:φ50mm*stroke 125mm-75mm adjustable
Control system:single board microcomputer control system
Dimension:L1000xW900xH1700mm
Weight:450 kgs
