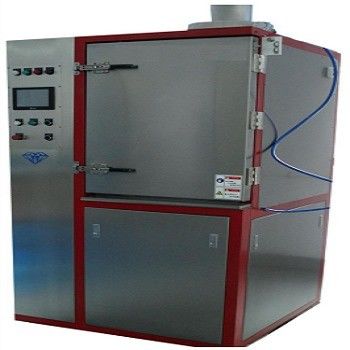

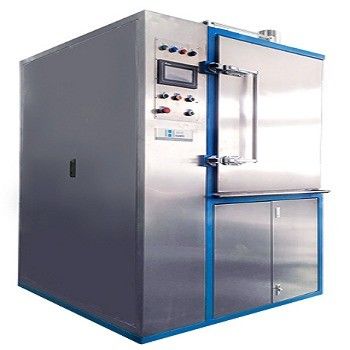

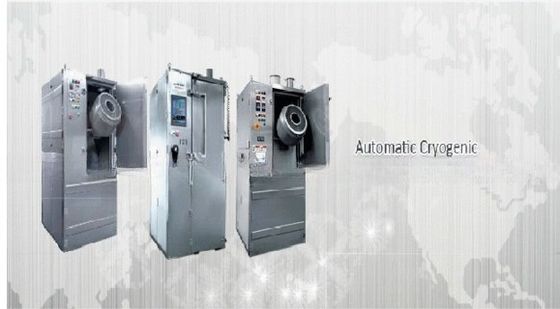

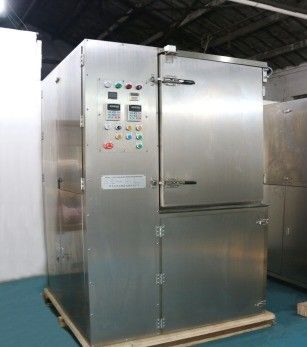

Rubber cryogenic shotblasting deflashing machine Competitive Price

Rubber cryogenic shotblasting deflashing machine Competitive Price

Rubber cryogenic  shotblasting deflashing machine Competitive Price
Rubber cryogenic  shotblasting deflashing machine Competitive Price Rubber cryogenic  shotblasting deflashing machine Competitive Price Rubber cryogenic  shotblasting deflashing machine Competitive Price Rubber cryogenic  shotblasting deflashing machine Competitive Price Rubber cryogenic  shotblasting deflashing machine Competitive Price Rubber cryogenic  shotblasting deflashing machine Competitive Price

Large Image :  Rubber cryogenic shotblasting deflashing machine Competitive Price

Product Details:
Place of Origin: Jiangsu, China
Brand Name: Mixer
Certification: CE ISO
Payment & Shipping Terms:
Price: $25,000.00/sets >=1 sets
Packaging Details: wooden case with film
Supply Ability: 50 Set/Sets per Month

Rubber cryogenic shotblasting deflashing machine Competitive Price

Description
Type: Rubber Cutting Machine, PLC Condition: New
Video Outgoing-inspection: Provided Machinery Test Report: Provided
Warranty Of Core Components: 5 Years Core Components: PLC, Engine, Motor, Gear
Voltage: 220V Dimension(L*W*H): 984X1000X1935mm
Warranty: 1 Year Key Selling Points: High-accuracy
Power (kW): 5.5 KW Weight (KG): 1200 KG
Applicable Industries: Manufacturing Plant Showroom Location: None
Power(W): 5.5KW Weight: 1200kg
After-sales Service Provided: Online Support After Warranty Service: Video Technical Support
Marketing Type: New Product 2020 Port: Shanghai

Product Description



Automatic jet freezer trimmer is a principle of using liquid nitrogen freezing rubber, plastic, aluminum-magnesium alloy products fly side embrittlement occurs rapidly, in this state, a high-speed jet flying plastic projectile hit products for trimming, thereby both high efficiency and high quality products to remove burrs while maintain a trimming device product itself does not change the nature of the characteristics.

Suitable for freezing trimming materials: various plastics, zinc magnesium aluminum die-casting and other products.

   30-80 Alternative trimming workers, high efficiency, daily trimming 200-400kg, the product structure is not required, there are holes, the internal structure of complex products can deburring, trimming good effect, good uniformity, You can save the cost of rubber, tooling costs, trimming costs less than artificial;





Specification

























Machine size(mm)







984W×1000L×1935H(mm)













power supply









AC380V 50/60HZ 3P













Total power







5.5KW(Projectile wheel motor 3.7KW)













Casting wheel speed









3000-7200rpm













Design temperature









MAX -130













Vibrating screen diameter









D500(mm)













Parts basket capacity









60L













Operation interface









Touch scree













Casting wheel size









250(mm)













Refrigerant type and conditions





Liquid nitrogen,and the liquid nitrgen tank you can buy from your country

  Media flow systems





 Low temperature pressure vessel storage and transportation, pipeline with safety valve, shut-off valve, and equipment connection pipe for special low temperature insulation metal hose

 Parts basket dimension





diameter:50CM and depth:40CM

Open/close type





Door  type

Basket perforation size





5MM

Usable volume of basket





60L

 Throwing wheel diameter





250mm

 Speed





7200rpm/M

  Media type





Plastic particles

 Touch screen size





6 Inch

PLC control





Taida



Rubber cryogenic  shotblasting deflashing machine Competitive PriceRubber cryogenic  shotblasting deflashing machine Competitive Price
