Home ProductsRubber Precision Preformer (Barwell)

Barwell Prefomrer Gear Pump 380v Voltage Continuous Cold Feed with High Precision 200

Barwell Prefomrer Gear Pump 380v Voltage Continuous Cold Feed with High Precision 200

Barwell Prefomrer Gear Pump 380v Voltage Continuous Cold Feed with High Precision 200
Barwell Prefomrer Gear Pump 380v Voltage Continuous Cold Feed with High Precision 200 Barwell Prefomrer Gear Pump 380v Voltage Continuous Cold Feed with High Precision 200 Barwell Prefomrer Gear Pump 380v Voltage Continuous Cold Feed with High Precision 200 Barwell Prefomrer Gear Pump 380v Voltage Continuous Cold Feed with High Precision 200 Barwell Prefomrer Gear Pump 380v Voltage Continuous Cold Feed with High Precision 200 Barwell Prefomrer Gear Pump 380v Voltage Continuous Cold Feed with High Precision 200

Large Image :  Barwell Prefomrer Gear Pump 380v Voltage Continuous Cold Feed with High Precision 200

Product Details:
Place of Origin: Zhejiang, China
Brand Name: Dechuan
Certification: CE&ISO
Payment & Shipping Terms:
Price: $400,000.00/sets >=1 sets

Barwell Prefomrer Gear Pump 380v Voltage Continuous Cold Feed with High Precision 200

Description
Type: Rubber Preformer Condition: New
Video Outgoing-inspection: Provided Machinery Test Report: Provided
Warranty Of Core Components: 1 Year Core Components: Gear, Pump
Voltage: 380v Dimension(L*W*H): 4X2X1.9m
Warranty: 1 Year Key Selling Points: Sustainable
Power (kW): 30 KW Weight (KG): 3000 KG
Applicable Industries: Manufacturing Plant Showroom Location: Turkey
Application: Rubber Products Making Advantage: Higher Efficiency
Function: Cutting After-sales Service Provided: Field Installation, Commissioning And Training
After Warranty Service: Video Technical Support

Product Description



Gear Pump Prefomrer

Gear Pump Preformer is a Continuous Cold Feed Gear Pump preforming machine with high-precision and high efficiency for rubber blank production.





Summary

Preformer can produce blanks with high efficiency and high accuracy.Its biggest advantage is to extrude all kinds of mediun/high-hardness blanks accurately with different shapes, such as ring, bar, three-dimension and so on. It is used widely in rubber industry, O Ring, Valves, Oil seal, Golf, Tennis, Automotive, Footwear and other industries.It integrates vacuuming, filtering, extruding, cutting with weighing and counting together, not only can it meet needs of customers, but also it saves labor cost and enhances productivity.



Main Features

Cold feeding rubber performer integrates filtering, extrusion cutting, automatic weighing functions together. Compared with the hot performer, it is the cold strips feeding continuously, and it does not need open mixing mill to roll the material, improves the production efficiency, and greatly reduces the labor intensity of workers.



The structure of this machine is divided into two kinds: with gear pump system and without gear pump system. The cold feed performer without gear pump has a pure screw structure, and the weight accuracy of the rubber blanks produced is low. It is suitable for those products that do not require high weight precision. The preforming machine with gear pump can realize the precise measurement of rubber, so that the material can be processed under the condition of constant pressure and flow, so that the weight precision of rubber blanks produced is very high.



Specification

 Barwell Prefomrer Gear Pump 380v Voltage Continuous Cold Feed with High Precision 200 0



Detailed Images

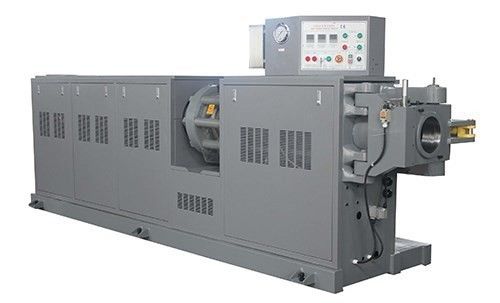

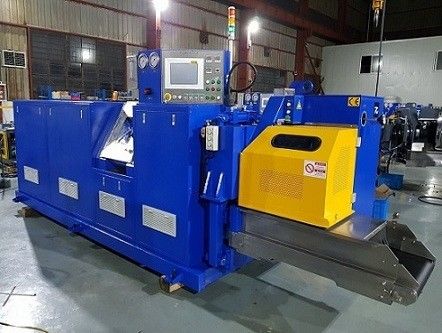

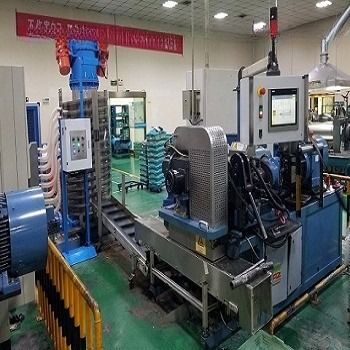

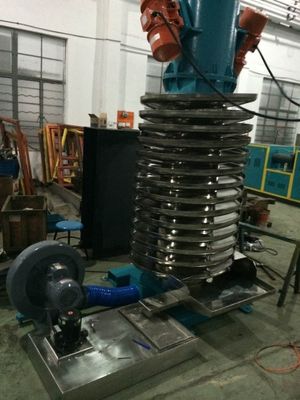

Barwell Prefomrer Gear Pump 380v Voltage Continuous Cold Feed with High Precision 200 1

Barwell Prefomrer Gear Pump 380v Voltage Continuous Cold Feed with High Precision 200 2
