Product Details:
|
| Plastic Processed: | EVA | Condition: | New |
|---|---|---|---|
| Output (kg/h): | 400 - 450 Kg/h | Video Outgoing-inspection: | Provided |
| Machinery Test Report: | Provided | Warranty Of Core Components: | 1 Year |
| Core Components: | Gearbox, Motor, Srew, Barrel | Type: | EVA Pellet Production Line |
| Screw Design: | Single | Voltage: | 220V/380V/440V/460V |
| Weight: | 19000 | Warranty: | 1 Year |
| Showroom Location: | Turkey, Viet Nam, Brazil, Thailand | Applicable Industries: | EVA Products Factory |
| Screw Diameter (mm): | 150 | Screw L/D Ratio: | 12:1 |
| Marketing Type: | Ordinary Product | Port: | Shanghai |

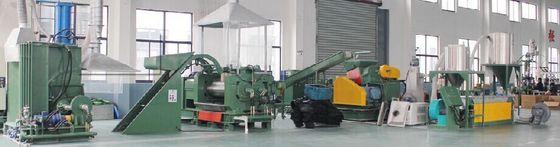

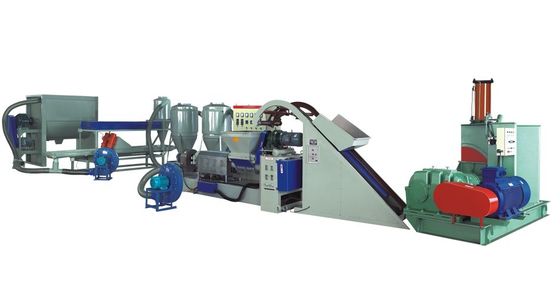

The EVA Pellets machine line includes materials mixing,conveying,feeding, extrusion, air cooling, silo as an entire production line.It is semi-automatic continuous operation with high effective production. Various output capacity of the EVA pellet production lines are available for options, feel free to contact us for more information.
The EVA pellets machine line includes the following equipment units:

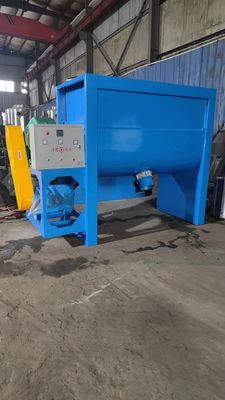

1.Dispersion Mixer : the dispersion mixer is used to mix EVA raw material, Rubber & plastic materials,and other additives,make the materials perfect dispersion and well distributed before feeding to the Extruder,ensuring good quality of final EVA pellet to be produced.
2. Bucket conveyor : This bucket conveyor transfer the ready mixed material to the feeding hopper of the EVA extruder (EVA pellet formation machine).

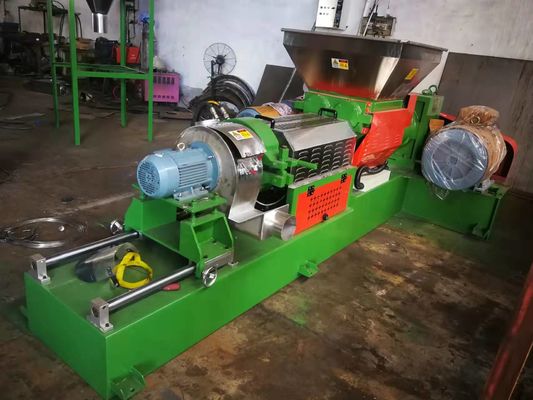

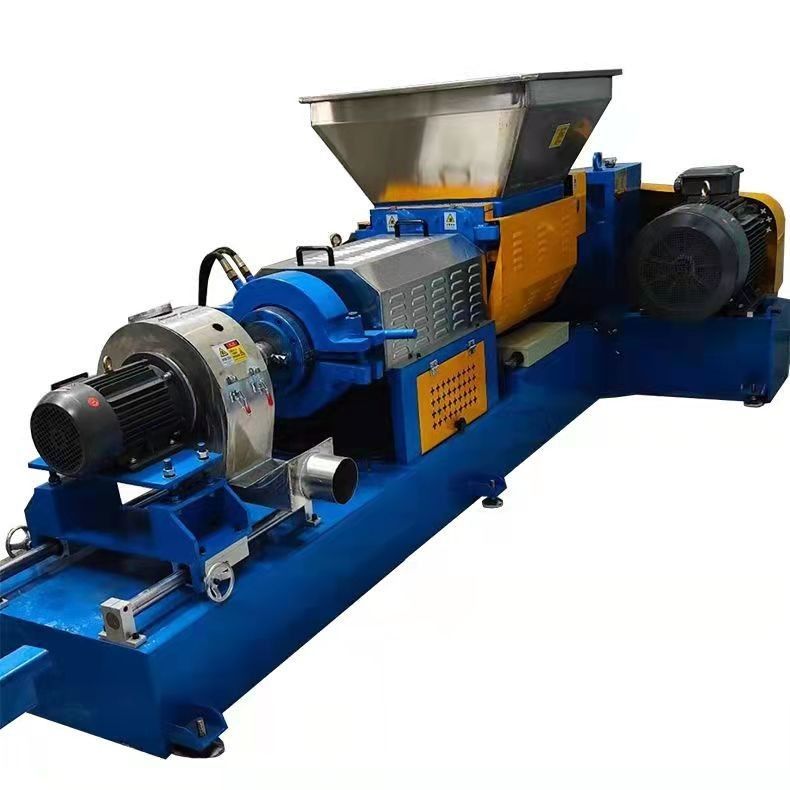

3. EVA Extruder : After conveyor transfer EVA mixture to the extruder,the EVA extruder will make the EVA pellets.
4.Centrifugal cyclones with air blower: To cool down the EVA pellets.
5. Vibrating screen : The vibrating screen will further cool down the EVA pellets after cyclones,and screen out the powder or unqualified sizes.
6. Stirring Machine:It can make the EVA pellets with colors mixed evenly, used as storage bin, and ready for final package.
