Product Details:
|
| Type: | Rubber Cutting Machine | Condition: | New |
|---|---|---|---|
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Warranty Of Core Components: | 2 Years | Core Components: | PLC, Bearing, Motor |
| Voltage: | 220V,380V, 415V ETC | Dimension(L*W*H): | 1020x700x1300mm |
| Warranty: | 1 Year | Key Selling Points: | Long Service Life |
| Power (kW): | 1 KW | Weight (KG): | 300 KG |
| Applicable Industries: | Manufacturing Plant | Showroom Location: | Turkey |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Marketing Type: | Ordinary Product |
| After Warranty Service: | Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service | Local Service Location: | Turkey |
| Port: | Shanghai |

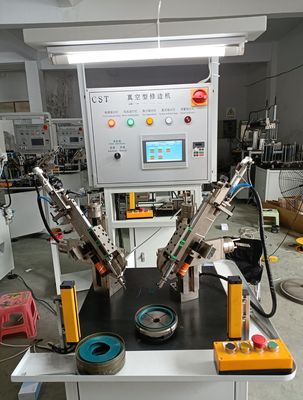

Chuck type Oil Seal Trimming Machine:
Application:
Trimming for kinds of rubber skeletons, oil seal, packing cup, kinds of washer, round parts, etc., material of the parts can be rubber, PU, etc.
Main technical parameter:
Model:VRT-2
Vacuum≤-0.035Mpa
Circular jump out of main spindle≤0.01mm
Plane jump out≤0.02mm
Speed of spindle:0-3000r/min
Trimming degree:-10°~100°
Trimming size range :Φ10mm-300mm (adjustable)
Blade specification(TxWxL):2x4x75mm
Blade material: tungsten steel.
Total power consumption: 1 KW
Power supply: 220V, single phase.
Weight: 300kg
Dimension:1020mm×700mm×1300mm
