Product Details:
|
| Type: | Rubber Cutting Machine, PLC | Condition: | New |
|---|---|---|---|
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Warranty Of Core Components: | 5 Years | Core Components: | PLC, Engine, Bearing, Gear |
| Voltage: | 220V | Dimension(L*W*H): | 1300x640x1000 Mm |
| Warranty: | 1 Year | Key Selling Points: | Sustainable |
| Power (kW): | 4 KW | Weight (KG): | 380 KG |
| Applicable Industries: | Manufacturing Plant | Showroom Location: | None |
| Power(W): | 4kw | Weight: | 380kg |
| After-sales Service Provided: | Video Technical Support | Marketing Type: | New Product 2020 |
| Port: | Shanghai |
Application:

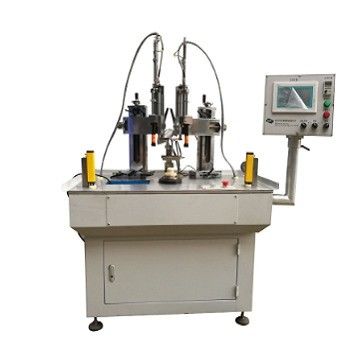

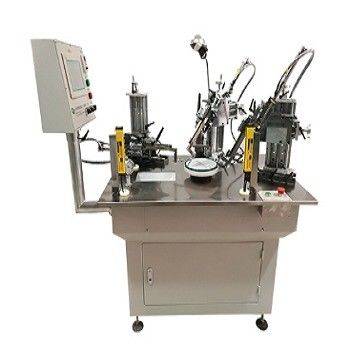

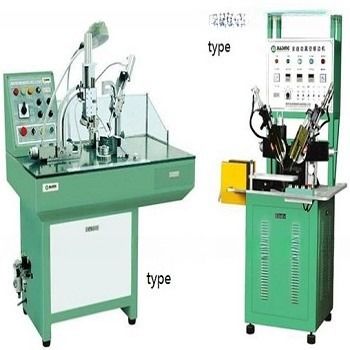

Rubber Oil Seal Trimming machine is used for kinds of rubber skeletons, rubber oil seal, rubber packing cup, kinds of rubber washer, round rubber parts.
Main technical parameter:
Vacuum≤-0.035Mpa
circular run out of main spindle≤0.01mm
plane run out≤0.02mm
Speed of spindle: 0-3000r/min
cutting degree:-10°~100°
cutting range :10mm-300mm (adjustable)
Blade specification(ThickxWidexLength):2x4x75mm
Blade material:tungsten steel.
Total power comsumption: 1 KW
Voltage: 220V,single phase.
Weight: 300kg
Dimension:1020mm×700mm×1300mm
Main Technical specification:
| Motor | 4KW (380V,3 Phase,50HZ) |
| vibrator motor | 0.25KW (380V,3 Phase,50HZ) |
| Compressed air pressure | 0.4-0.8 Mpa |
| Vibrator mesh size | 5mm-50mm (customized);standard supply 5 PCS meshes with machine |
| Working principle | High speed centrifugal tangent technology |
| Capacity | Equivalent to 30~100 persons’ manual work |
| Weight | 380 kg |
| Dimension | 1300x640x1000 mm |
