1.5 kW Power Rubber Sheet Slitting Machine for Professional Cutting

1.5 kW Power Rubber Sheet Slitting Machine for Professional Cutting

1.5 kW Power Rubber Sheet Slitting Machine for Professional Cutting
1.5 kW Power Rubber Sheet Slitting Machine for Professional Cutting 1.5 kW Power Rubber Sheet Slitting Machine for Professional Cutting 1.5 kW Power Rubber Sheet Slitting Machine for Professional Cutting 1.5 kW Power Rubber Sheet Slitting Machine for Professional Cutting 1.5 kW Power Rubber Sheet Slitting Machine for Professional Cutting 1.5 kW Power Rubber Sheet Slitting Machine for Professional Cutting

Large Image :  1.5 kW Power Rubber Sheet Slitting Machine for Professional Cutting

Product Details:
Place of Origin: China
Brand Name: Mixer
Certification: CE
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: $2,000.00 - $9,999.00/sets
Packaging Details: wooden case package
Delivery Time: 20-30days
Payment Terms: T/T
Supply Ability: 30sets per months

1.5 kW Power Rubber Sheet Slitting Machine for Professional Cutting

Description
Type: Rubber Cutting Machine Condition: New
Video Outgoing-inspection: Provided Machinery Test Report: Provided
Warranty Of Core Components: 2 Years Core Components: PLC, Gearbox, Motor, Gear
Voltage: 220V,380V, 415V ETC Dimension(L*W*H): 1200x800x1210mm
Warranty: 1 Year Key Selling Points: Long Service Life
Power (kW): 1.5 KW Weight (KG): 750 KG
Applicable Industries: Manufacturing Plant Showroom Location: Turkey
After-sales Service Provided: Engineers Available To Service Machinery Overseas Marketing Type: Ordinary Product
After Warranty Service: Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service Local Service Location: Turkey
Port: Shanghai

Product Description

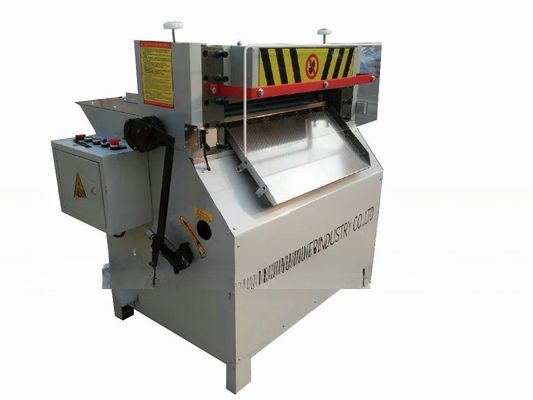

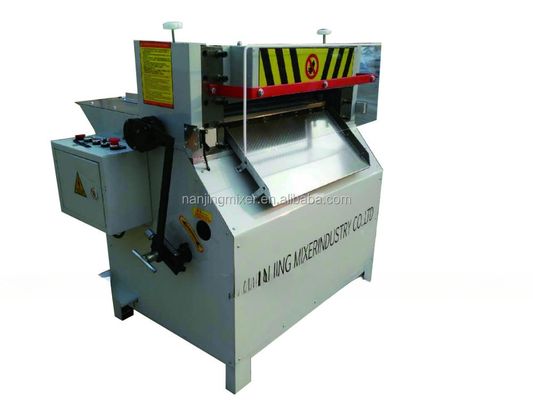

1.Our Rubber Strip Cutting Machine (Rubber Strip Cutter )is  optimized in structure and easy to operate.With glass plates positioning in front make the operation more secure. Feeding platform is made of pure mirror stainless steel, truly beautiful appearance and guarantees safe production, high automation, easy operation and low noise and has a good safety device, automatic lift feed roller device is also a friendly design.

2.Feed roller of Rubber Strip Cutting Machine (Rubber Strip Cutter) adopts high-precision dual-clutch, free to adjust the width of strip material from 1mm to 50 mm, at high precision cutting.

3.The blade of the machine is alloy inlaid high speed wear-resistant material, sharp and long life service.

4.More humanity NC electrical control system. (You can control the start switch(button) only cut one time ,after confirming the weight in need already, then converted to a continuous strip cut) and significantly increased the electrical life ,a simple operation, more convenient to use.

5.CNC type Rubber Strip Cutting Machine (CNC Rubber Strip Cutter)  is available for options:rubber feeding is controlled by PLC and stepper motor,with mechanical-spring material press roller  to make the rubber sheet feeding more accurate and smooth,improving the cut precision for the rubber strip.Easy operation, operator just input the desired width in the computer,the right width strip will be cut continuously.During cutting process, you can freely adjust the width of cut material as per your actual need.This CNC type Rubber Strip Cutting Machine,combining advanced CNC automatic mechanical and electric integration system,it overcome the problem for the normal strip cutting machine whose transmission parts could be wore after long time use.

Specification



Model

XQ-450

XQ-620

XQ-820

XQ-1000

XQ-1220

Max. feeding rubber width(mm)

   450

   620

  820

  1000

1220

Max. cutting thickness

(mm)

   20

  20

   20

   20

20

Max.

Cut efficiency

(times/min)

  86

 86

 80

 80

80

Cut precision

    ±0.1mm

   ±0.1mm

    ±0.1mm

  ±0.1mm

±0.1mm

Motor power(KW)

    1.5

1.5

     3

   3

5.5

Dimension

(LxWxH:cm)

105x70x110

115x85x110

140x96x120

165x100x123

180x100x142

Weight(Kg)

500

750

 840

1250

1400
