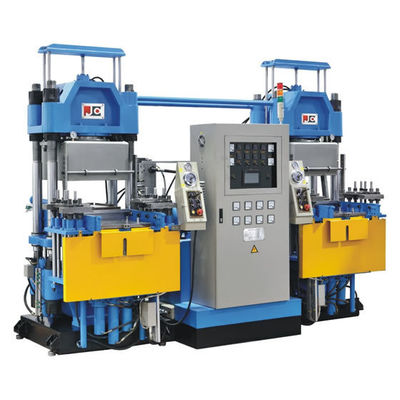

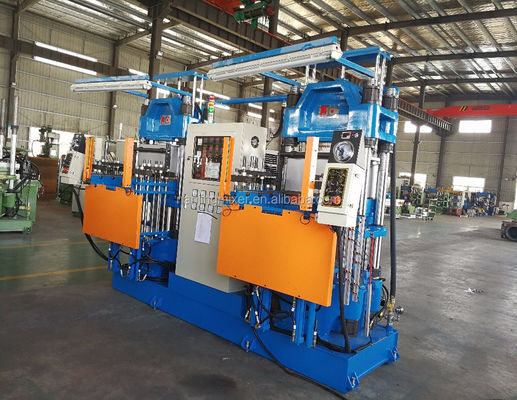

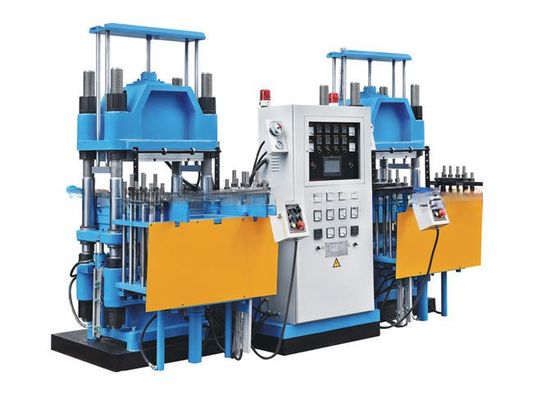

15KW Rubber Vacuum Compression Molding Press for 13000 KG Large Scale Production

Large Image : 15KW Rubber Vacuum Compression Molding Press for 13000 KG Large Scale Production

Product Details:

Place of Origin:	Jiangsu, China
Brand Name:	Geekung
Certification:	CE,ISO

Payment & Shipping Terms:

Price:	$30,000.00 - $99,999.00/sets
Packaging Details:	plastic film packed and loaded in a whole container.
Payment Terms:	T/T
Supply Ability:	30 Set/Sets per Month

Contact Now

15KW Rubber Vacuum Compression Molding Press for 13000 KG Large Scale Production

Description

Condition:	New	Video Outgoing-inspection:	Provided
Machinery Test Report:	Provided	Warranty Of Core Components:	1 Year
Core Components:	PLC, Motor, Pump	Machine Type:	Vacuum Vulcanizing Press
Voltage:	220V/380V/415V/440V/480V	Dimension(LWH):	3830x2450x2990
Weight:	13000 KG	Warranty:	1 Year
Key Selling Points:	Long Service Life	Showroom Location:	Turkey
Applicable Industries:	Manufacturing Plant	After-sales Service Provided:	Engineers Available To Service Machinery Overseas
Power(W):	15KW	Marketing Type:	Ordinary Product
After Warranty Service:	Video Technical Support, Spare Parts, Field Maintenance And Repair Service	Local Service Location:	Turkey
Port:	Shanghai

Product Description

Hydraulic Compression Molding Press/Rubber Hydraulic Vulcanizing Machine/Rubber Vacuum Compression Molding Press/Compression Moulding Machine:

APPLICATIONS:

Ideal for the production of making rubber gaskets, O-rings, keyboards, medical stoppers, medical rubber products, seal, wipers scraping head, sports ,rubbe seals,etc.

REMARKABLE FEATURES:

· The vacuum suction hood provides highly efficient vacuum suction effect for the entire mold inside the working platen, suction speed of 700HG/2 sec. The unit offers simplified construction, easy to operate and maintain, with fast mold change.

· Integrated hydraulic circuit provide various pipe functions on the circuit boards, reducing piping to a minimum. The oil cooler ensures long service life of the circuit valve.

· The motion time, traverse and number of motions can be conveniently set on the control panel to meet product variations, ensuring production quality.

· Combines two molding units in one machine, which can be operated separately.

· While in vulcanization molding operations, the hydraulic pump motor can be set for running, or stopped for power saving.

· The electric system is controlled by the PLC controller, allowing for easy operation and accurate adjustment. An emergency switch provides added safety for the mold and the operator.

Specification

Model		JC-PV80T-2	JC-PV150T-2	JC-PV200T-2	JC-PV250T-2	JC-PV300T-2
Clamping Force	TON	80	150	200	250	300
Plate Size	mm	380×420	450×450	500×550	550×550	650×650
Piston Stroke	mm	380	345	380	380	380
Heating Capacity	kw	9	9	13.5	20.4	20.4
Pump Motor	kw	5.5	7.5	7.5	11	15
Piston Diameter	mm	230	356	495	406	430
Max Mold Size L×W×H	mm	340×380 ×180	410×410 ×120	510×510 ×200	510×510 ×200	610×610 ×175
Machine Dimensions	mm	2850×1625 ×2610	3150×1640×2550	3650×1800×3090	3650×1800×3090	3830×2450×2990
Machine Weight	kg	6500	7200	9300	11000	13000
