Product Details:
|
| Type: | Rubber Cutting Machine, Single Shaft And Double Shaft | Condition: | New |
|---|---|---|---|
| Voltage: | 220V,380V, 415V ETC | Dimension(L*W*H): | 1200x800x1210mm |
| Warranty: | 1 Year | Key Selling Points: | High-accuracy |
| Power (kW): | 1.4 KW | Weight (KG): | 280 KG |
| Applicable Industries: | Manufacturing Plant | Showroom Location: | Turkey |
| After Warranty Service: | Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service | Local Service Location: | Turkey |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Power(W): | 1.4kw |
| Weight: | 280kg | Port: | Shanghai |
Application:
Fast cut of all kinds of rubber, silicone gaskets/ washer, ring-shaped tubular products.
Features:
1. When the cut is finished, materials take off automatically, and through the collection boxes to gather the cut products.
2. Vacuum absorption of the cut product, so ensuring the finished product more precise.
3. Automatic air blowing function makes loading and unloading more convenient, greatly improve the product cutting efficiency;
4. Using color LCD touch screen control, operation is simple.
5. All electrical components,pneumatic components are imported from abroad or domestic famous brand products, to ensure long-term use, reliability and stability of the new machine.
6. According to customer requirements,choose to install a round blade or strip blade, ensuring cost saving on the blade.

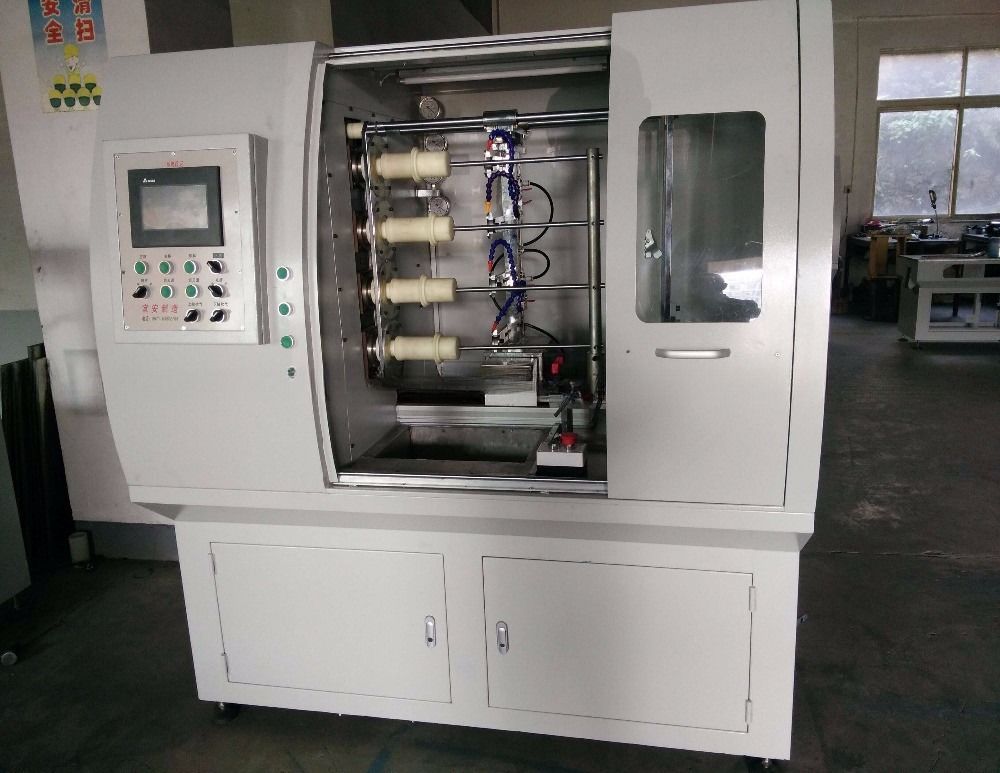

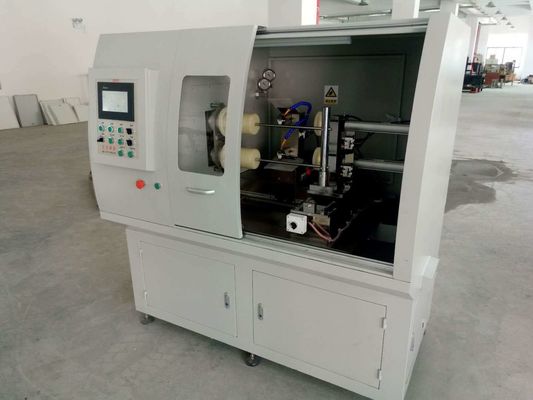

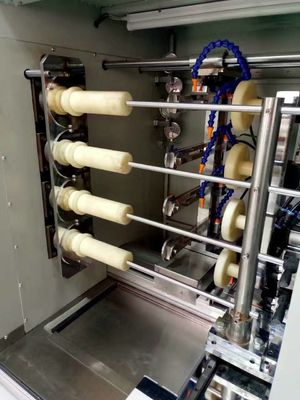

7.There are single shaft,double shafts,4 shafts for options.
Main technical data:
Model | JCM200-1 | JCM200-2 | JCM200-4 |
cutting efficiency | ≥60 times /min | ≥ 120 times /min | ≥200 times /min |
Working rotation speed | 0-3000rpm | 0-3000rpm | 0-3000rpm |
Cut precision | ≤±0.05 mm | ≤±0.05 mm | ≤±0.05 mm |
Cut size | (1)Rubber diameter:10-150mm (2)Max. Cut length (standard):140mm; Lengthened type:350 (3)Max.Rubber wall thickness:18mm | (1)Rubber diameter:10-150mm (2)Max. Cut length (standard):140mm; Lengthened type:350 (3)Max.Rubber wall thickness:20mm | (1)Rubber diameter:10-150mm (2)Max. Cut length (standard):140mm; Lengthened type:300 (3)Max.Rubber wall thickness:12mm |
Specification of blade | 1.Round disc blade dia:60*25.4x0.3 2.Strip blade 2x8x120mm | 1.Round disc blade dia:60*25.4x0.3 2.Strip blade 2x8x120mm | 1.Round disc blade dia:60*25.4x0.3 2.Strip sblade: 2x8x120mm |
consumption of compressed air | 20L/min | 30L/min |
30L/min |
Air pressure | 0.5Mpa-0.8Mpa | 0.5Mpa-0.8Mpa | 0.5Mpa-0.8Mpa |
Vacuum degree | ≤-0.035Mpa | ≤-0.035Mpa |
|
Power source | AC220V±5% | AC220V±5% | AC220V±5% |
Total power | 1.4 KW | 2 KW | 3KW |
Dimension | 1200x800x1210mm | 1600x900x1650mm | 1650x1100x1700mm |
Total weight | 280kg | 400 | 500 kg |
