Rubber and Plastic resin mixing mill mixer machinery/small size silicone open mixing mill

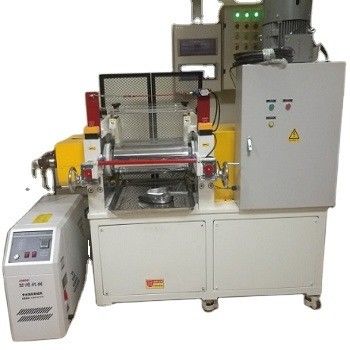

Large Image : Rubber and Plastic resin mixing mill mixer machinery/small size silicone open mixing mill

Product Details:

Place of Origin:	China
Brand Name:	Mixer

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	$6,000.00/sets >=1 sets
Packaging Details:	film wrap into container
Delivery Time:	60days
Payment Terms:	T/T
Supply Ability:	60DAYS

Contact Now

Rubber and Plastic resin mixing mill mixer machinery/small size silicone open mixing mill

Description

Diameter Of Roll(mm):	160 Mm	Length Of Roll(mm):	320 Mm
Video Outgoing-inspection:	Provided	Machinery Test Report:	Provided
Warranty Of Core Components:	5 Years	Core Components:	PLC, Engine, Bearing, Motor, Pressure Vessel, Gear
Cooling Mode:	Water Cooling	Condition:	New
Voltage:	As Per Customer's Request	Dimension(LWH):	1650xW980xH1500mm
Warranty:	1 Year	Key Selling Points:	Sustainable
Power (kW):	7.5	Weight (KG):	1200 KG
Applicable Industries:	Manufacturing Plant	Showroom Location:	Turkey
Max. Gap Between Rolls:	5mm	Fraction Ratio Of Rolls:	1:1.27
Roll Heating & Cooling:	Through Universal Rotary Joints With Internal Spray	After Warranty Service:	Video Technical Support

Product Description

Used for rubber&plastic mixing,sheeting.

Features:

· Tailored structure,stable performance, easy to operate.

· There are varied speeds and fraction ratios available, which can satisfy most customers’ formula and processing requirements.

· Frame, frame cap and base, looking very nice, are welded and treated by annealing for stress relieving.

· Chilled alloy cast iron roll is abrasion resistant with long service life.

· The speed reducer is the hard-tooth surface gear reducer of Class 6 precision, which has long service life and low noise.

· Perfect emergency stop device can ensure the safety of personnel and equipment.

· The seal structure with special design can eliminate the leaking phenomenon of lubricating oil.

· Stock pan is easy to clean up with dislodging device.

· Human nature designed operating system reduces labor intensity.

· Modular structure offers various structures for customers’ option.

· The flexible design system can satisfy customers’ special design requirements within the shortest time.

· A load test running will be made to the assembled equipment in our company to save debugging time for customers.

Specification

Rubber and Plastic resin mixing mill mixer machinery/small size silicone open mixing mill

Shipment moment

Rubber and Plastic resin mixing mill mixer machinery/small size silicone open mixing mill

Customer visit

Rubber and Plastic resin mixing mill mixer machinery/small size silicone open mixing mill
