Product Details:
|
| Condition: | New | Video Outgoing-inspection: | Provided |
|---|---|---|---|
| Machinery Test Report: | Provided | Warranty Of Core Components: | 5 Years |
| Core Components: | PLC, Engine, Motor, Gear | Machine Type: | Plate Vulcanizing Press |
| Voltage: | 380V | Dimension(L*W*H): | According To The Machine |
| Weight: | 18000 | Warranty: | 1 Year |
| Key Selling Points: | Famous Brand PLC | Showroom Location: | None |
| Applicable Industries: | Manufacturing Plant | Press: | Rubber Vulcanizing Press |
| Rubber Mat: | Rubber Mat Vulcanizing Press | Power(W): | 18.5kw |
| After-sales Service Provided: | Field Installation, Commissioning And Training | After Warranty Service: | Video Technical Support |
| Marketing Type: | New Product 2020 | Port: | Shanghai |
hydraulic press for rubber mat/vulcanizer
Platen vulcanizing press machine is used for vulcanizing all kinds of rubber and standard plastic&rubber products, and non standard products.Being a column structure and downward pressing type, the heating plate opens by the self-weight of the heating plate, platform and plunger. The rising of the plunger makes the heating plate close while the hydraulic oil provides the pressure.
Features for our Rubber mat or PVC floor Platen Vulcanizing press:

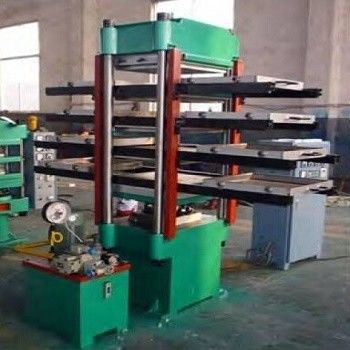

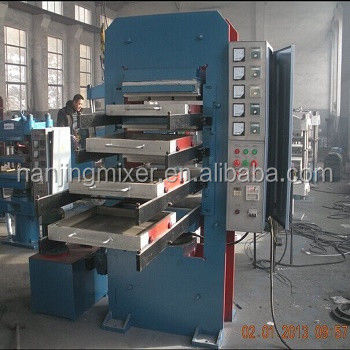

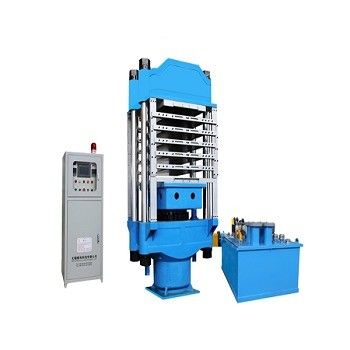

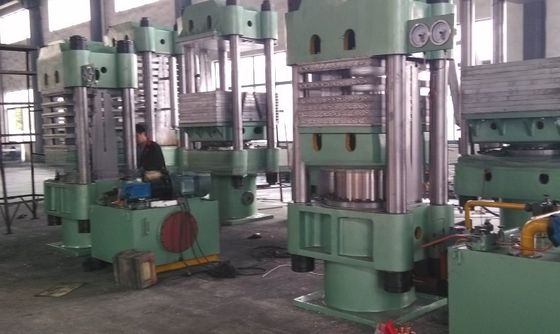

1. 4-columns structure or frame structure,as a below pressing type(upwards), the heating plate opens by the self-weight of the hot plate, platform and plunger.
2.The plate size,piston stroke and total pressure can be made according to customers’ actual requirement,the machine can equip with manual-pull mold and automatic hydraulic-pull mold,which reduces labors’ working strength and inconvenience.
3.This machine has three kinds of control method:manually,semi-auto. and full auto.
4.Fast speed mold-closing, high production efficiency, low locking speed to protect mold.
5.Made of nodular cast iron, the oil cylinder of machine is improved in compressed strength and wear resistance.
6.Adopting tubular electric heating component to heat up, the machine can reduce air pollution to keep workshop clean without boiler.
7.The rubber platen vulcanizing press is good look in shape, rational in structure, easy control, safe and reliable operation.
Specification:
| Model | Clamping force (Ton) | Working Pressure (Mpa) | Plate size (mm) | Plates distance (mm) | Max. Stroke (mm) | Heating Power (KW) | Motor Power (KW) |
| XLBD-25T | 25 | 16 | 300x300 | 100 | 250 | 4.8 | 3 |
| XLBD-50T | 50 | 16 | 400x400 | 150 | 300 | 9 | 3 |
| XLBD-63T | 63 | 20 | 500x500 | 150 | 300 | 12 | 4 |
| XLBD-100T | 100 | 20 | 800x800 | 200 | 300 | 14 | 3 |
| XLBD-160T | 160 | 20 | 750x850 | 125 | 600 | 16 | 3 |
| XLBD-200T | 200 | 25 | 800x800 | 250 | 300 | 20 | 7.5 |
| XLBD-315T | 315 | 25 | 1000x1000 | 250 | 300 | 24 | 11 |
| XLBD-500T | 500 | 25 | 1100x1100 | 250 | 350 | 30 | 15 |
| XLBD-630T | 630 | 25 | 1200x2000 | 300 | 350 | 35 | 15 |
| XLBD-1000T | 1000 | 25 | 1200x1200 | 300 | 350 | 35 | 18.5 |
| XLBD-1250T | 1250 | 25 | 1500x1200 | 300 | 400 | 40 | 18.5 |
1,Rich experience in manufacturing industry well-known brands. Reasonable price, fast delivery, "began in customer requirements, and finally customer satisfaction".
2,Because various Kinds of model, in order to allow you to quickly find the most suitable product, you just contact us, we can help you meet your requirements recommended related products!
3,We provide you with products and services. We will also provide you with related products and services in the future, and you can enjoy your purchase all our products quality service.
4,Our plant have more than twenty years of production experience and history, the scale of our factory, product quality, production technology in the industry are at the forefront.
